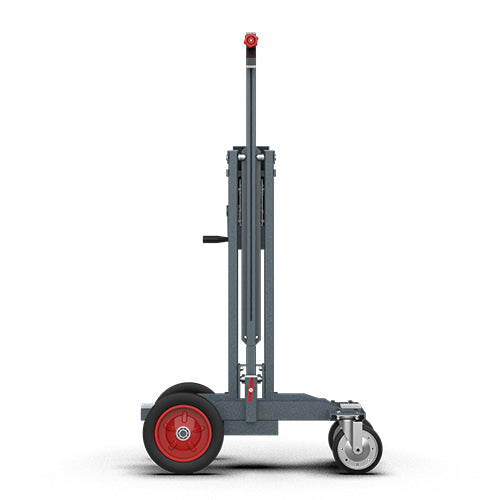

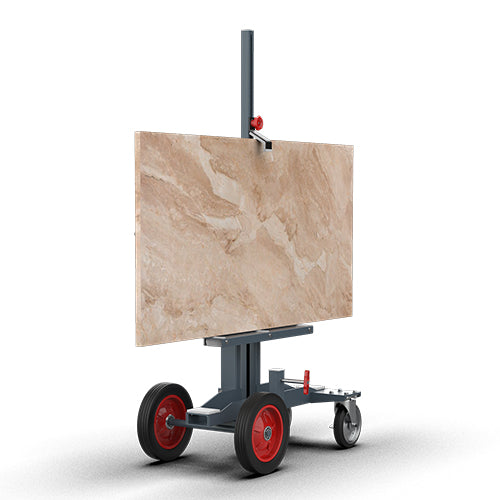

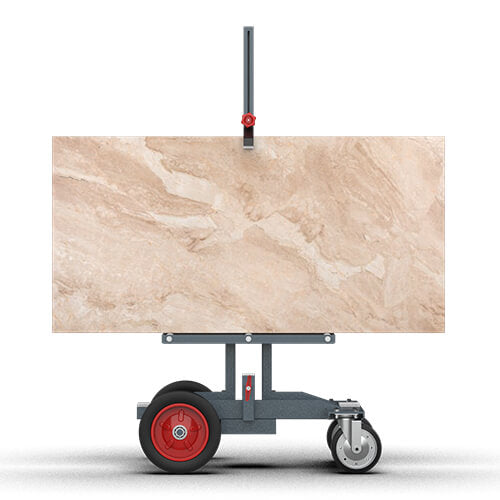

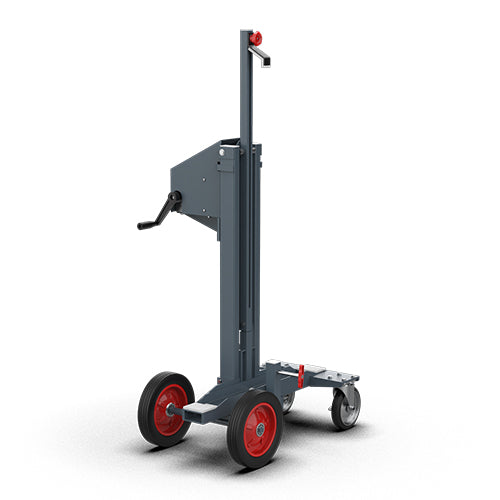

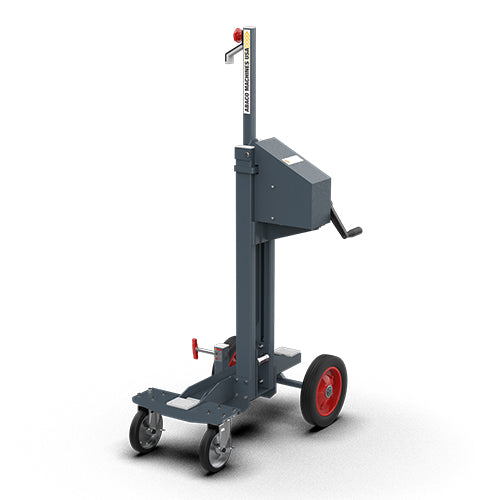

Abaco Machines Elevating Hand Cart EHC-3541

Safety raise and load slabs safely with Abaco Elevating Hand Cart

Abaco Elevating Hand Cart is designed for raising, loading, and unloading finished pieces of material safely with minimal labor cost.

This Hand cart is portable and practical to use in confined areas such as warehouses, factories, and construction sites.

What's outstanding about Elevating Hand Cart?

• A hand rope winch helps to lift or lower slabs quickly and safely.
• The locking handle structure to secure the slab from above, and the plastic clamp to hold the slab at the bottom for high safety during transport.
• Two large wheels and two swivel casters with safety brakes for stability and easily moving in any direction.
• The Hand Cart has the ability to elevate slabs up to 1100 lbs (500 kg) to load onto a truck.
• Easily move stone slabs up to 1400mm in height safely and effectively with a tie string.
• Rubber strips on the main base protect the slabs against cracking and scratching.
• A grip range is up to 70mm to help optimize work efficiency.

Technical specifications:

• Seat Length: 35 7/16" (900 mm)
• Seat Width: 4 1/8" (104 mm)
• Maximum Lifting Height: 37 3/8" (950 mm)
• Maximum Stone Width: 55 1/8" (1400 mm)
• Maximum Stone Thickness: 2 3/44" (70 mm)
• Length In (mm): 38 1/16 (977)
• Width In (mm): 25 1¾6 (656)
• Height In (mm): 70 ⅞ ~ 98 / (1800 ~ 2500)
• Net Weight Ibs (kg): 189.2 (86)
• Work Load Limit Ibs (kg): 1100 (500)
