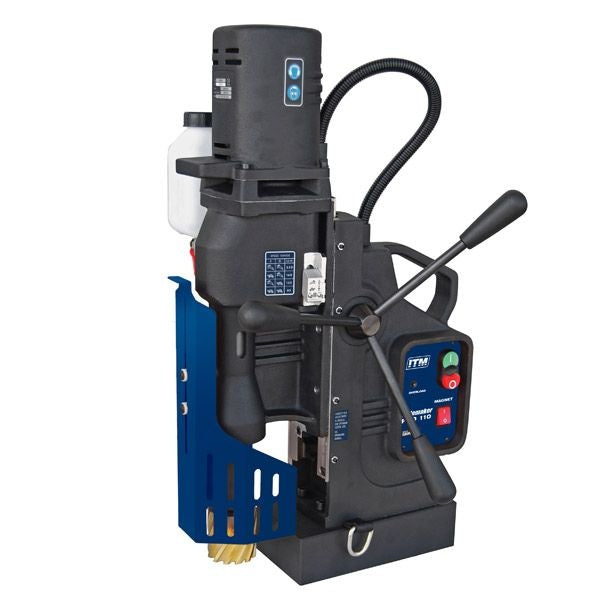

Holemaker 110mm X 110mm 240V Pro 110 Magnetic Base Drill 4MT
Holemaker Pro 110 Magnetic Base Drill, 240v, 4MT, Capacity: 110mm Diameter X 110mm
Features
The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth.
1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 4 Morse Taper spindle bore for usewith taper shank drills, tapping head (M30 Capacity) and taper shank reamers.
Supplied complete with side mounted coolant system and arbor for use with 3/4" shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 110mm diameter and 110mm depth. 1100ml pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling.
Specifications
- Capacity ( Diameter ): 110mm
- Capacity ( Depth ): 110mm
- Capacity ( Twist Drill ): #4 Morse Taper 47mm
- Motor Power: 1650 watt
- Input Power: 1800 watt Single Phase 240V
- Gearbox: 4 Speed Heavy Duty Mechanical Gearbox (85 / 135 / 160 / 250rpm)
- Weight: 31.0kg
- Magnetic Dead Lift: 22000Nm On 25mm Steel Plate
- Stroke: 214mm

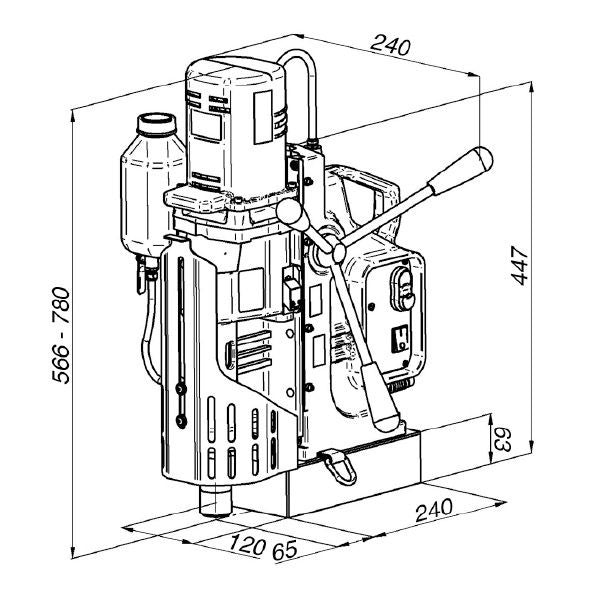

- Height: 566mm min / 780mm max
- Through Spindle Coolant System
- Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
- Supplied In Metal Carry Case With Cutter Guard & Safety Strap
