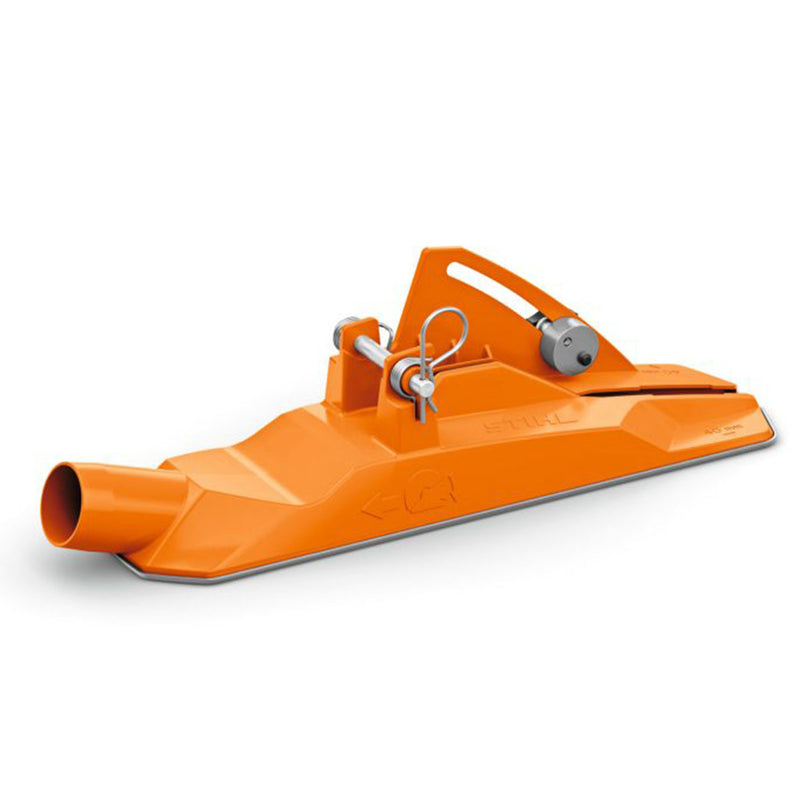

STIHL Depth limiter and dust extraction outlet for TSA 300 - TA02 690 0800

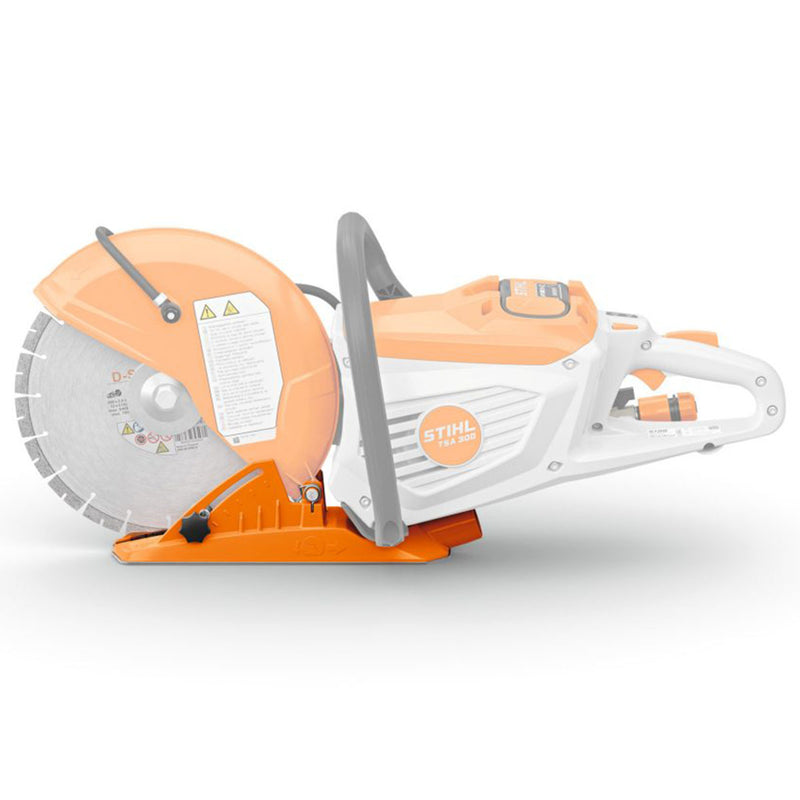

The STIHL depth stop with vacuum support effectively supports low-dust cutting of mineral materials on flat surfaces with your STIHL TSA 300 battery cut-off machine.

This depth stop allows you to continuously adjust the cutting depth as well as having the parallel limit stop as a guide aid. An extraction system can be connected to the vacuum support to minimise dust generation. Dust can be efficiently reduced, especially on flat surfaces in the pull-to-cut mechanism. To do this, you need a compatible, powerful wet and dry vacuum cleaner, such as the STIHL SE 133 M-E electric wet and dry vacuum cleaner.

Features:

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.

EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.

FOR DUST BINDING AND COOLING. When working with your power tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the power tool, this rinsing is easy and permanently assured.

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.

Key Features:

• Practical depth stop with vacuum support for cut-off machine
• Precise, infinitely variable adjustment of cutting depth

Specifications:

• Rated voltage: 36 V
• Power consumption: 3 kW
• Power: 2.50 kW 1)
• Cordless power system: AP
• Recommended battery: AP 500 S
• Device weight without battery: 6.3 kg 2)
• Cutting disk diameter: 300 mm
• Max. cutting depth: 110 mm
• IPX Rating: IPX4
• Min. battery working time AP 200 S: 5 min 3)
• Max. battery working time AP 200 S: 9 min 3)
• Min. battery working time AP 300 S: 9 min 3)
• Max. battery working time AP 300 S: 16 min 3)
• Min. battery working time AP 500 S: 12 min 3)
• Max. battery working time AP 500 S: 22 min 3)
• Device length with cutting disc: 74.2 cm
