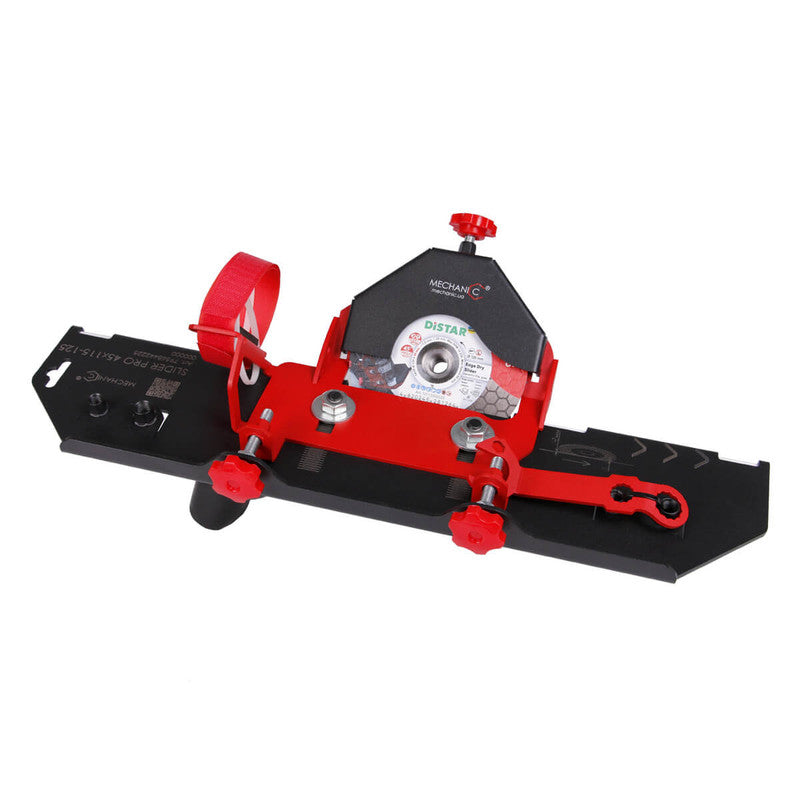

Distar Slider 45 PRO 2.0 45° Tile Cutting Jig with Diamond Blade - 71419031036

The Distar Slider 45 PRO 2.0 is a professional 45-degree tile cutting jig for angle grinders, designed to make precise 45° mitre cuts on porcelain and ceramic tile easy, fast, and consistently high quality. A large sliding surface gives maximum control of the cutting element. The unique M14 spindle locking unit accepts any 115–125mm angle grinder, regardless of brand. Includes a 1A1R 125×30mm Edge Dry diamond blade. Maximum material thickness: 20mm.

Key Features

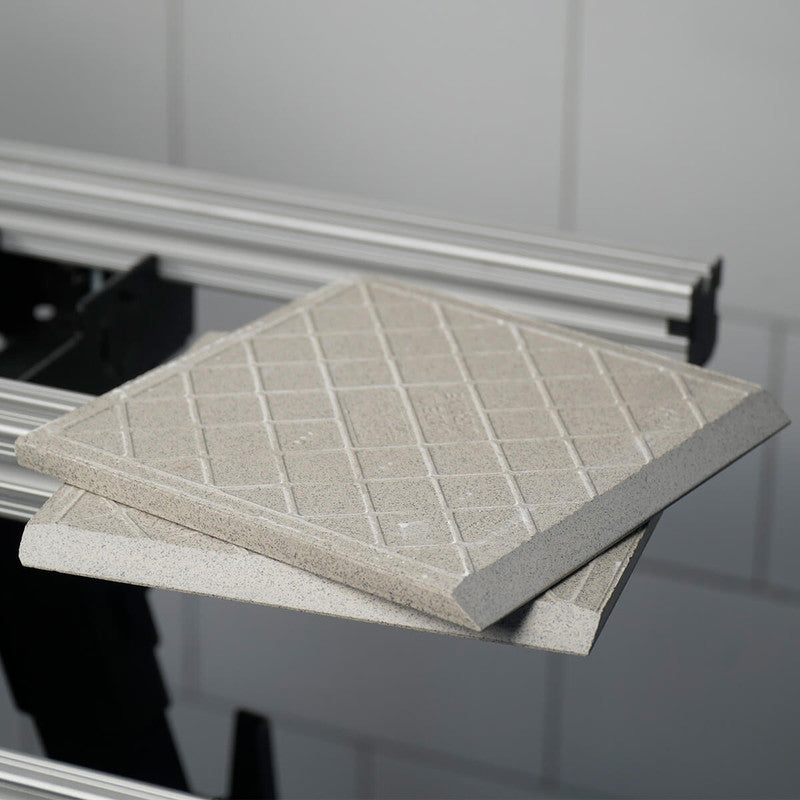

• Professional 45° Mitre Cutting: Delivers precise, repeatable 45° cuts for modern tile joint design — clean edges every time.
• Universal M14 Spindle Lock: Fits any 115–125mm angle grinder from any manufacturer.
• Large Sliding Surface: Maximum control and stability of the cutting element throughout the cut.
• Adjustable Dust Collector: Configures to suit any tile thickness.
• Built-In Water Supply Positions: Pipe mounting points for wet cutting setup.

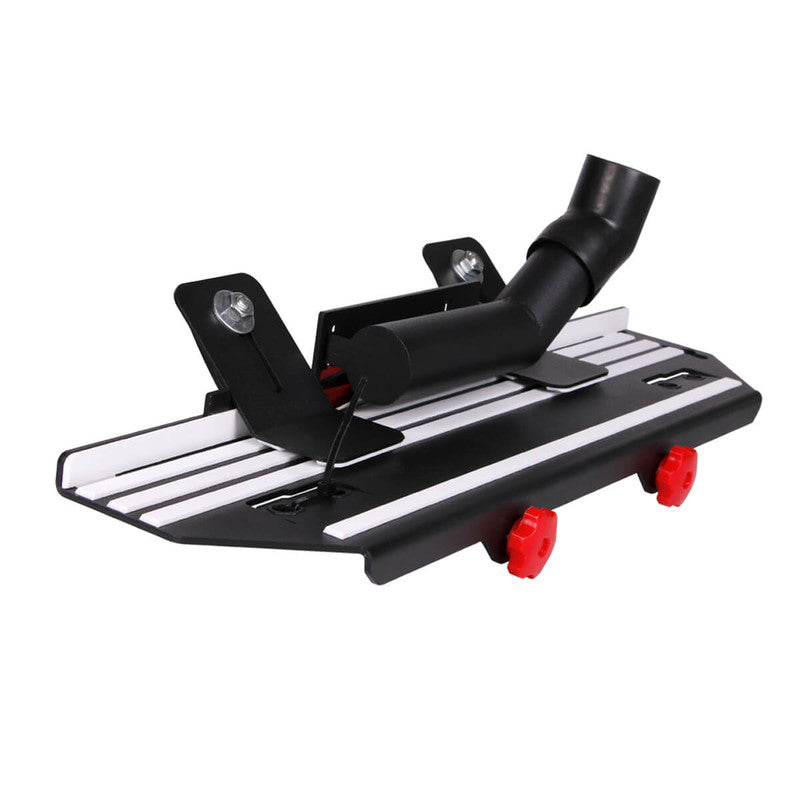

• Inverted Cutting Position: Optimised for precision 45° cuts on small-format tile elements.

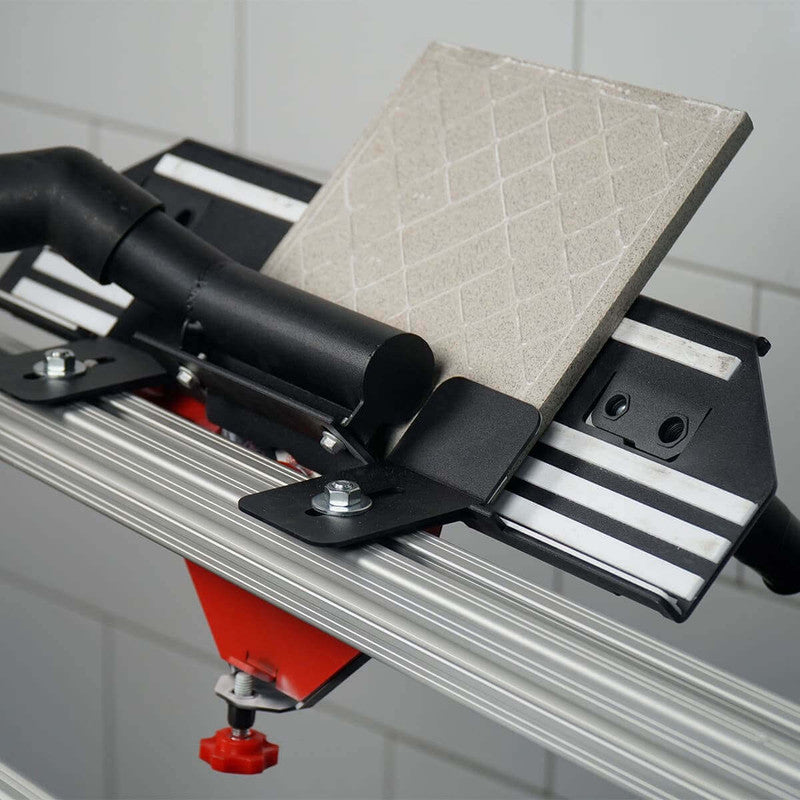

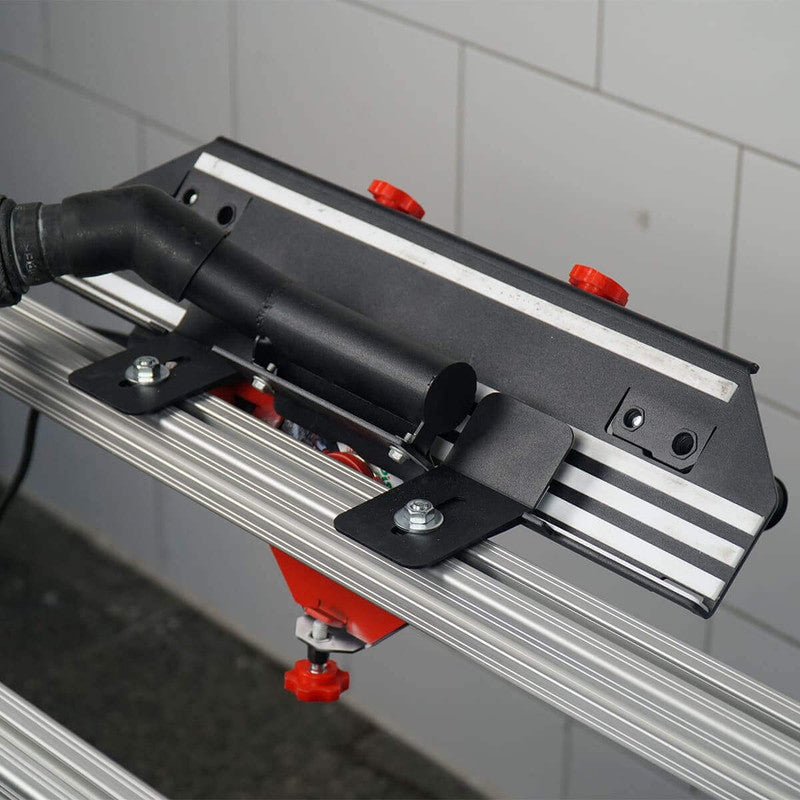

• CeraMAX Table Compatible: Recommended for use fixed to the Distar Mechanic CeraMAX table for maximum precision.
• 20mm Max Material Thickness: Handles standard floor and wall tile profiles.

Kit Includes

• Slider 45 PRO 2.0 jig
• 1A1R 125×30mm Edge Dry diamond blade
• Multifunctional wrench
• Water supply pipe
• Rubber adapter
• Belt and fabric clasp (angle grinder fixing — choose one)

Specifications

• SKU: 71419031036
• Brand: Distar
• Model: Slider 45 PRO 2.0
• Cut angle: 45 degrees
• Compatible grinder diameter: 115–125mm (M14 spindle)
• Included blade bore: 30mm
• Max material thickness: 20mm
• Cooling: Dry (water supply positions included for wet setup)
• Compatible table: Distar Mechanic CeraMAX
