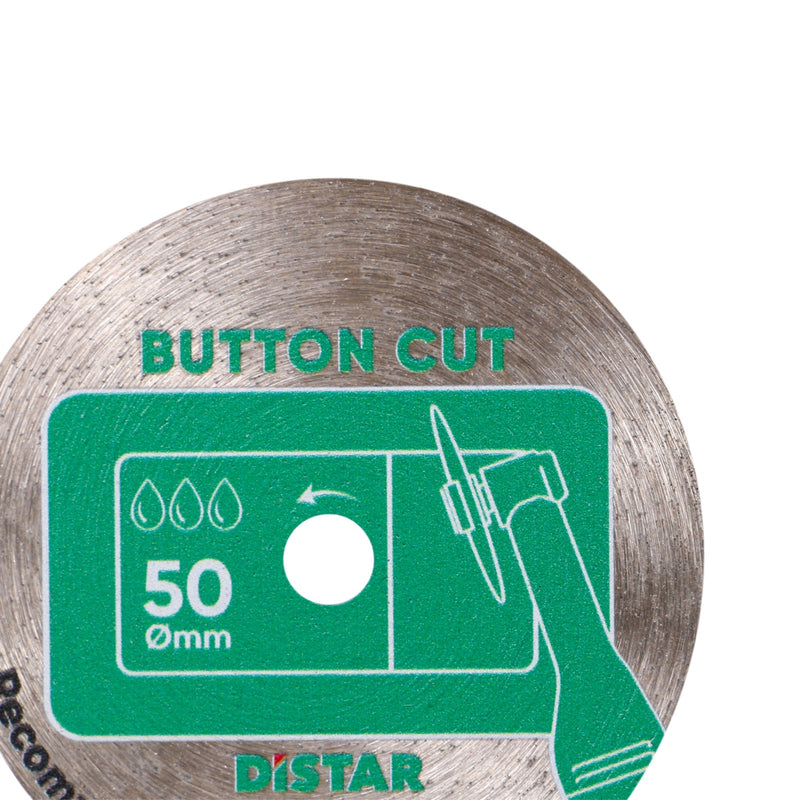

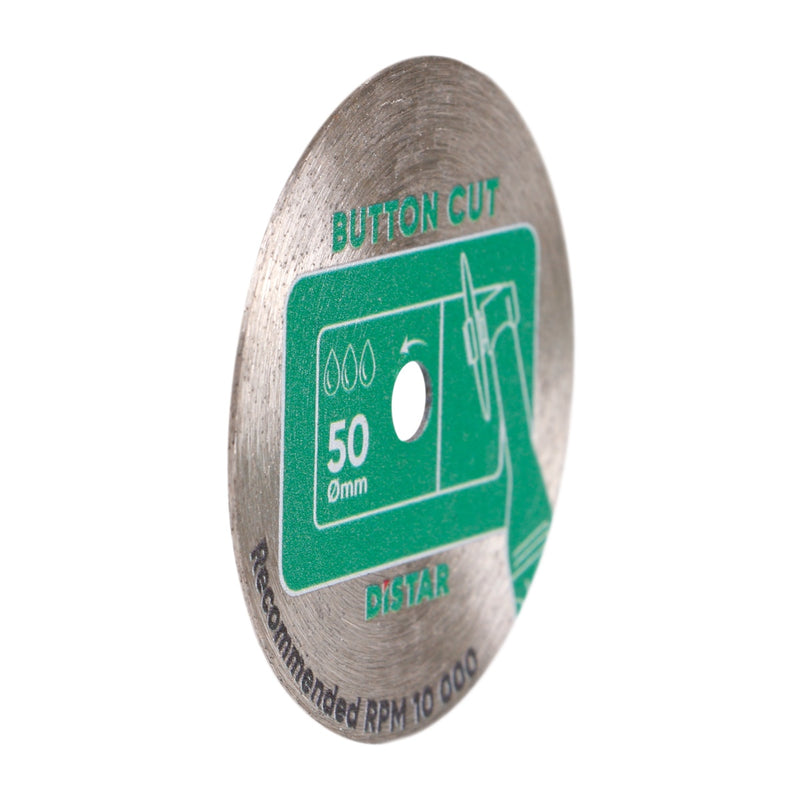

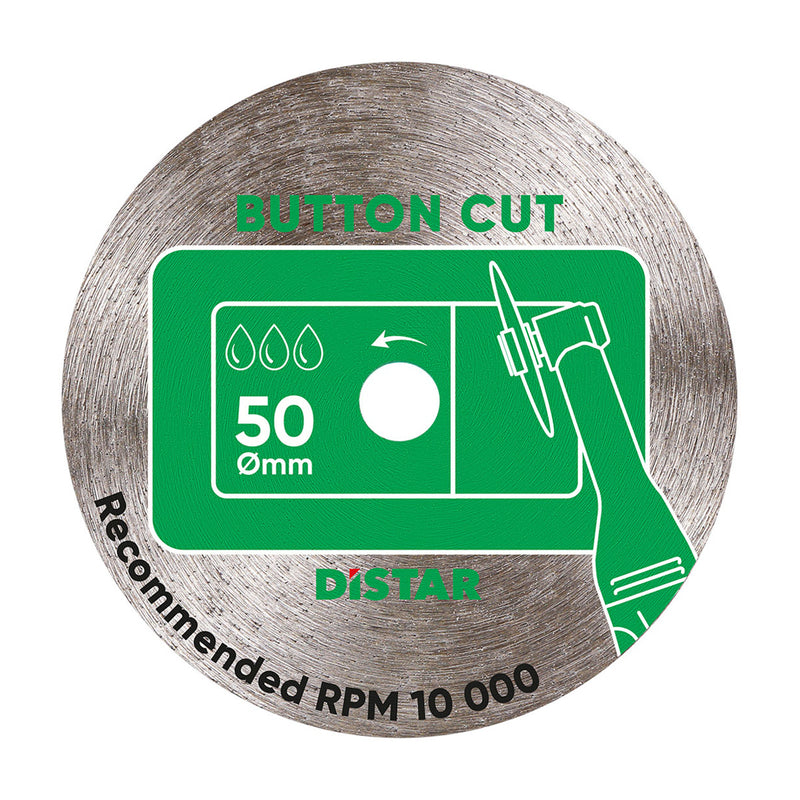

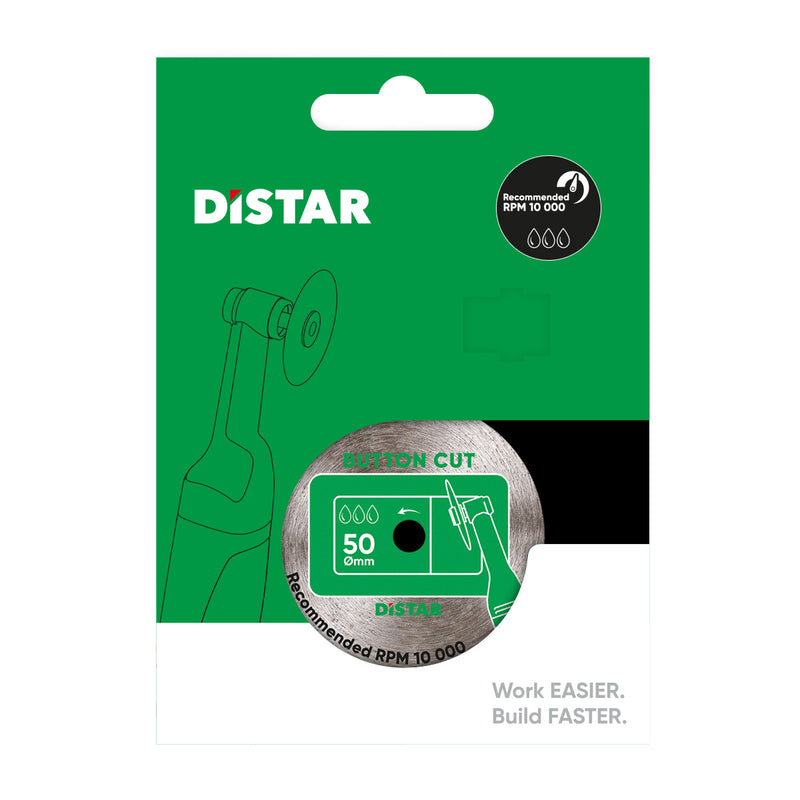

Distar Diamond Cutting Blade Proxxon 50x0,8x5,8 ButtonCut - 11120159105

Distar Diamond Cutting Blade Proxxon 50x0,8x5,8 ButtonCut

The production of ceramic elements for bathrooms and kitchens is a labor-intensive and time-consuming process. Making installation buttons, switches, sockets and other elements usually requires several hours of precise work. After cutting, accurate grinding of chips is needed with no room for error.

The 50 ButtonCut blade is a solution that reduces the process several times. Fine diamond grain and a blade thickness of 0.8 mm provide a clean cut without chips. Grinding is no longer required, which significantly speeds up and simplifies the work.

Finished products look professional and flawless.

Experience a new level of speed and perfection.

Features:

• Application: cutting flush buttons, switches, sockets and other ceramic elements
• Blade thickness: 0.8 mm
• Operation mode: with water supply
• Recommended speed: around 10,000 rpm
• Compatibility: small engraver machines

Specifications:

• Diameter: 50 mm
• Mounting hole: 5.8 mm
• Thickness: 0.8
• Cooling: With water
• Bore diameter: 5.8
• Purpose: Ceramic, Porcelain gres

Please note:

• For best results and to prevent chipping, reduce the speed to around 10,000 rpm.
• A sufficient water supply must be maintained at all times. Even a slight reduction in water supply can cause chipping.

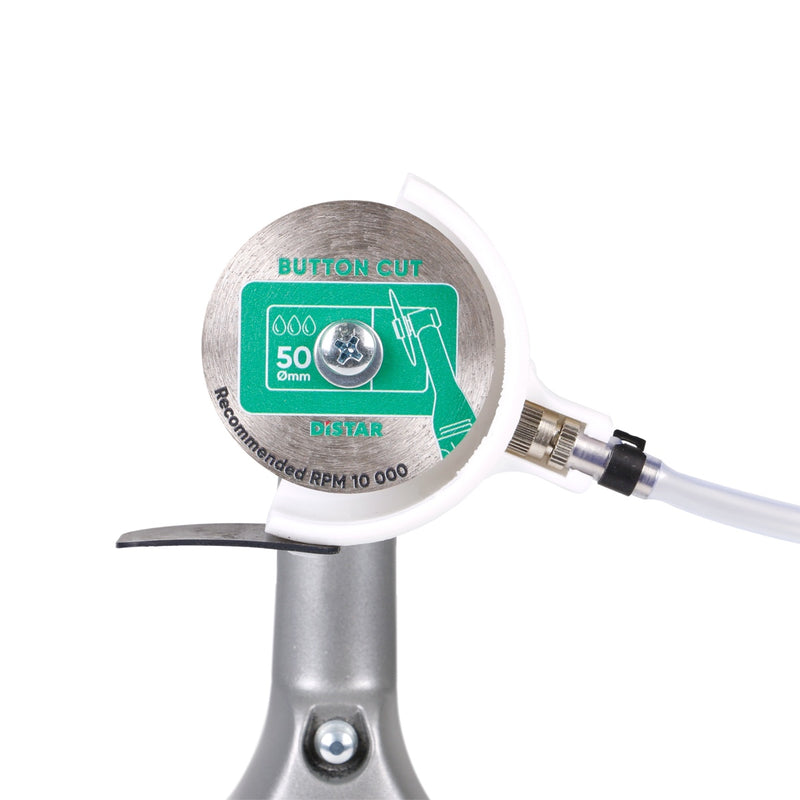

• Hand sprayers are not recommended. The Cover attachment is the best option, as it is installed on the small engraver machine and provides a constant water supply.
• Battery-powered water supply devices are recommended.
• Use the Support adapter for the small engraver machine. It helps reduce vibration and improves accuracy.
• For best results, place the tile on a vibration-absorbing material, such as polystyrene foam or similar.
