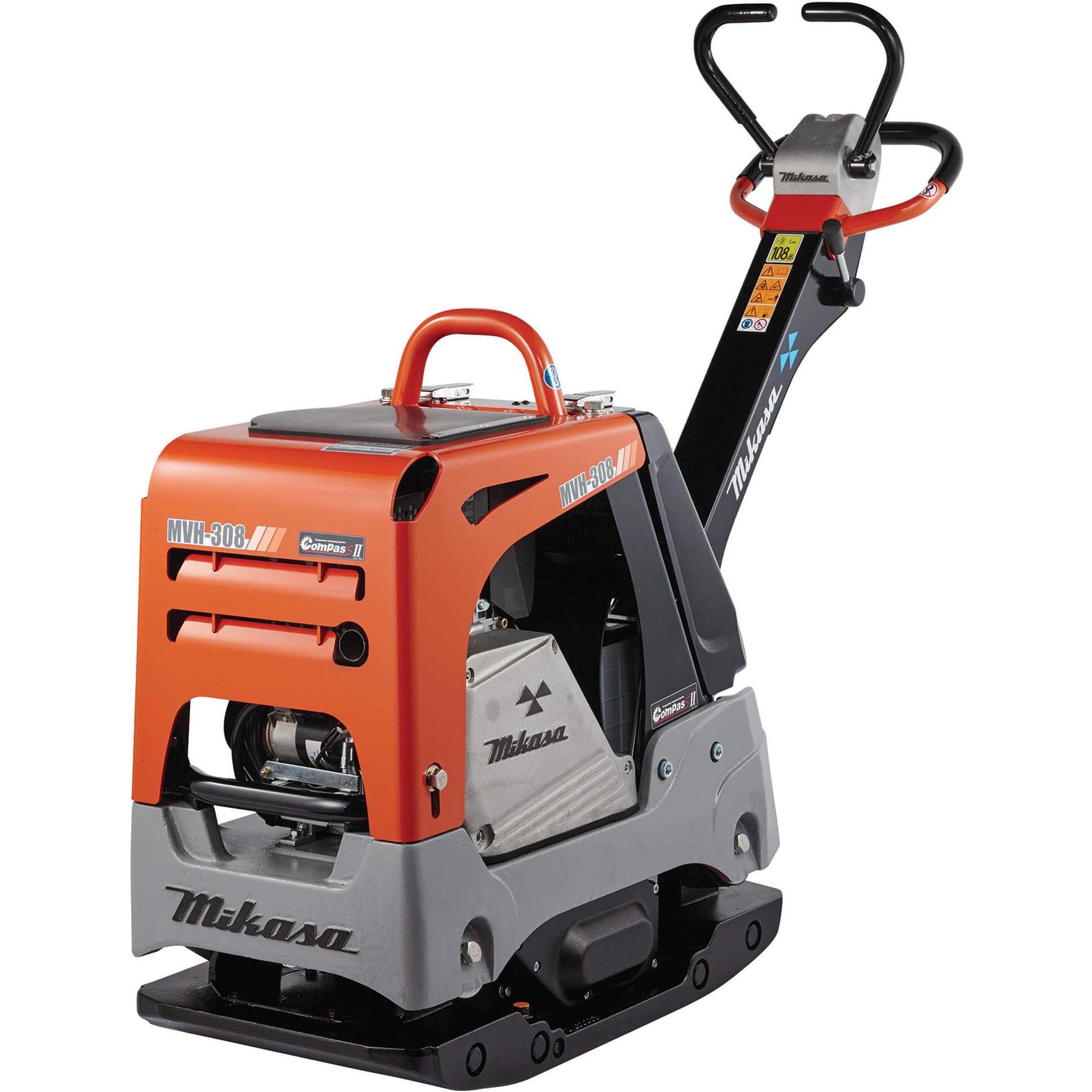

Plate Compactors: How to Choose the Right Model for Site

Updated on: 2025-12-23

• Key Benefits of Plate Compactors
• Step-by-Step Guide to Safe, Smooth Compaction
  • Step 1 — Inspect the Site and Plan the Passes
  • Step 2 — Choose the Right Machine and Base Material
  • Step 3 — Prepare and Moisten the Base
  • Step 4 — Operate with Overlapping Passes
  • Step 5 — Tackle Edges, Corners, and Tight Spots
  • Step 6 — Finish Layers and Check Density
  • Step 7 — Quick Maintenance After Use
• FAQs: Buying and Using a Compaction Plate
  • Which base depth or area size matches each machine class?
  • How moist should the soil be for best compaction?
  • Reversible versus forward-only: which should I pick?
• Summary
• About the Author

Compaction is the foundation of every lasting surface. Whether you are setting pavers, forming a shed pad, or prepping for a driveway, a dependable vibratory plate is the fastest way to reduce voids, increase density, and stop sinkage before it starts. This guide shows you how to choose the best machine for your sites, how to run it safely, and how to avoid common mistakes that cause ripples, edge lift, or premature failure. You will also discover accessories that save time when you need to cut, grind, or control dust around the jobsite.

Key Benefits of Plate Compactors

• Stronger bases, fewer callbacks: Proper density stops settling, rutting, and trip hazards so your work stays level and lasts longer.
• Speed without sacrificing quality: Vibratory action compacts quicker than hand tamping, finishing more square metres in less time.
• Smoother finishes with less effort: Consistent force and even passes create flat, professional results on sand, crushed rock, and asphalt patches.
• Versatility across materials: From granular soils to paver bedding and cold patch repairs, one compacting plate covers many tasks.
• Lower total cost of ownership: Modern engines and sealed components reduce downtime and service costs when you follow simple maintenance steps.

Step-by-Step Guide to Safe, Smooth Compaction

Step 1 — Inspect the Site and Plan the Passes

Walk the area and mark utilities, drains, and edges. Remove debris, organic matter, or large stones. Plan a route that keeps you moving in straight lines with slight overlaps, exiting the area without tracking across finished sections. Identify slopes and work uphill where possible for better control.

Step 2 — Choose the Right Machine and Base Material

Match the machine’s plate size and centrifugal force to your job’s base depth and footprint. Smaller forward plates excel at footpaths and tight access. Larger reversible models deliver deeper compaction on driveways or road base. Select well-graded crushed rock for sub-base layers and sharp sand for paver bedding. If your job includes cutting pavers or trimming concrete edges, keep a dedicated blade on hand; an ultra-thin turbo blade gives fast, clean cuts with minimal chipping.

Step 3 — Prepare and Moisten the Base

Spread your material in lifts, typically 50–75 mm for smaller plates and up to 100 mm for heavier units. Lightly moisten the layer so it clumps in your hand but doesn’t drip. Too dry and it won’t knit; too wet and it will pump. Screed level and fill low spots before you start compacting.

Step 4 — Operate with Overlapping Passes

Start at the perimeter and work in parallel rows with 25–50% overlap. Keep a steady pace; let the machine do the work. If you need to cut or grind adjacent concrete before compaction, the right abrasives and dust control make a difference. See our curated diamond tools, and capture fine dust with a dedicated HEPA dust collector to help maintain a cleaner workspace when surface prep is required.

Step 5 — Tackle Edges, Corners, and Tight Spots

Use a hand tamper near fragile edging, pits, or drains. For blockwork or tile trim, cut to fit before your final pass. Keep PPE on hand; when cutting or grinding, protect your lungs with fit-for-purpose disposable respirators suited to jobsite dust.

Step 6 — Finish Layers and Check Density

Compact each lift fully before adding the next. Inspect for movement underfoot or deflection at edges. For pavers, compact the bedding, lay units, add jointing sand, then vibrate with a mat to protect faces. Re-run your pattern until the surface stays stable and flat.

Step 7 — Quick Maintenance After Use

Brush off the plate, check fasteners, and inspect the belt guard. Clean or replace air filters on schedule, and keep engine oil fresh. Store upright on level ground. A few minutes after each job improves reliability and helps protect your investment.

Real-world feedback: “We cut our base prep time by almost half compared to hand tamping, and our paver work stays flatter,” reports a civil crew in NSW. Another contractor notes, “Reversible units make sloped driveways far easier—fewer passes, better grip, and less operator fatigue.”

Pro tip: Pair your compaction workflow with the right cutting and grinding accessories when altering edges or removing high spots. Shallow relief cuts and fast flush-trim passes can save hours compared with repeated rework of the base.

FAQs: Buying and Using a Compaction Plate

Summary

A stable base is the backbone of every successful surface. Select a compaction machine that matches your base depth and site size, work in controlled overlapping passes, and watch moisture levels to prevent pumping or dust-outs. Keep a few add-ons handy for adjacent tasks: a quality cutting wheel for clean paver adjustments, a purpose-built HEPA extractor when you need to grind or chase, and reliable PPE for respiratory protection. When you combine smart prep with steady technique, you get flatter, longer-lasting finishes and fewer callbacks—job after job. Browse proven accessories like an ultra-thin turbo blade, the HEPA dust collector, professional-grade diamond tools, and dependable disposable respirators to streamline your workflow.
