Viking Arm with 2 X Cabinet Installation System / Tool Case + 2 X Cabinet Installation Kit - VIKVA0220

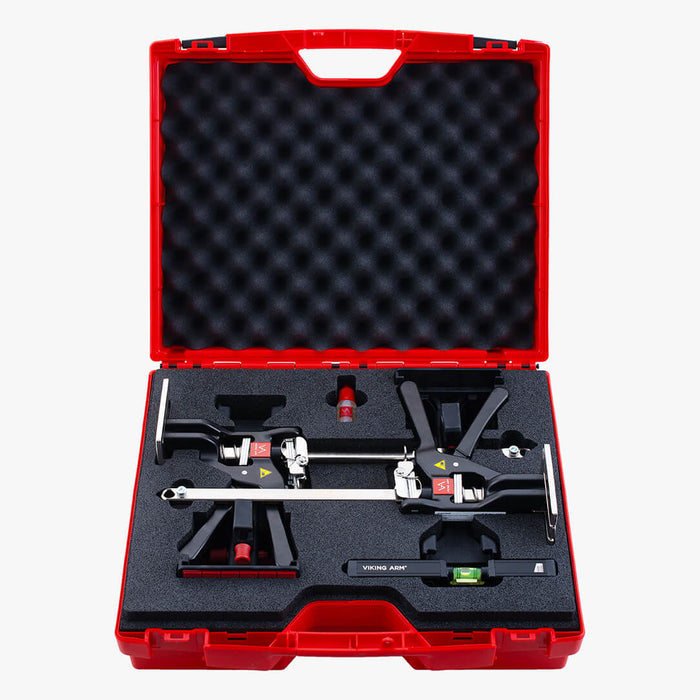

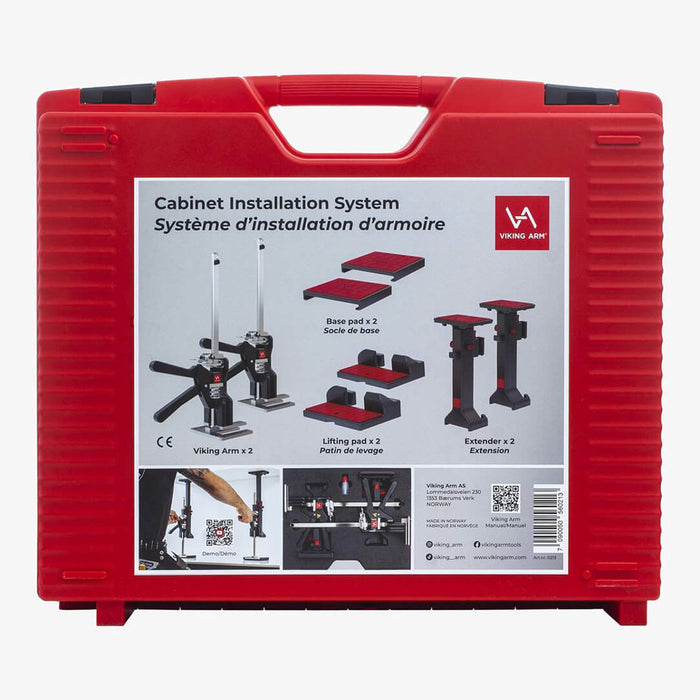

CABINET INSTALLATION SYSTEM / TOOL CASE WITH 2 X VIKING ARM + 2 X CABINET INSTALLATION KIT

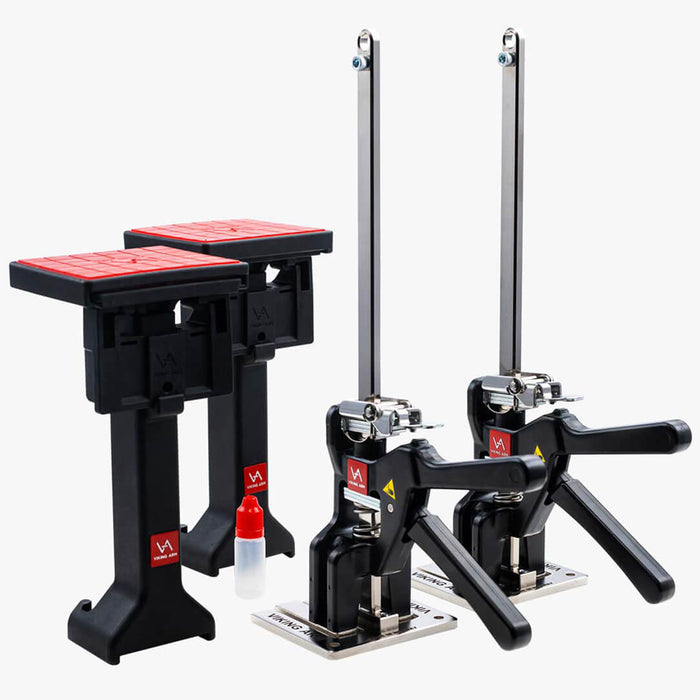

The Cabinet Installation System contains what you need for a quick, easy, and precise installation of upper cabinets. The tool case consists of 2 x Viking Arm and 2 x Cabinet Installation Kit and a magnetic spirit level. The Cabinet Installation Kit itself consist of an extender that helps you install cabinets up to 60.5 cm / 23.8 inches. It also contains a Base pad to protect the surface you place the Viking Arm on, and a Lifting Pad that protects the object you lift when you do NOT use the extender. The tool case even includes a small oil bottle ready to be filled up.

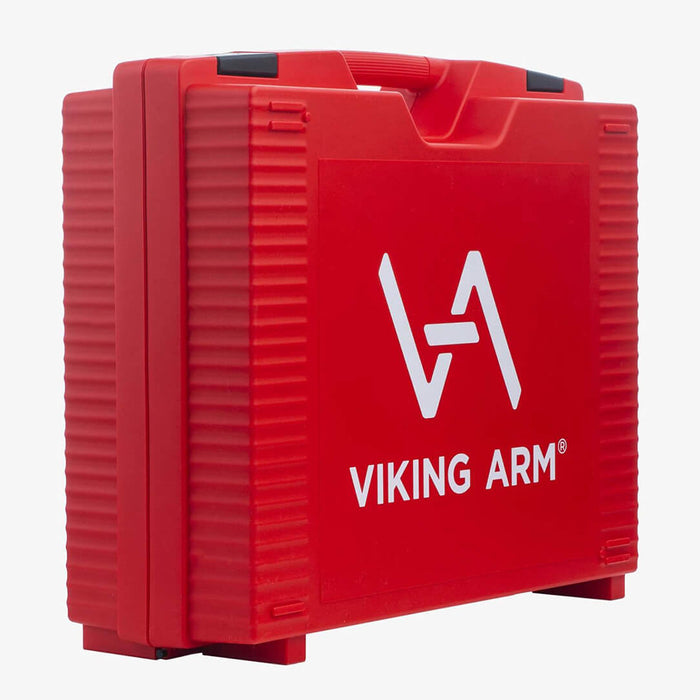

The tool case has dimensions W437 mm x H379 mm x D160 mm and comes with hard cut out quality foam insert. Softer protective foam in the lid. Weight without tools 1.9 kg /4.2 lb. Weight with tools included, 6.1 kg / 13.5 lb.
With a lifting capacity of up to 150 kg, the range of applications for the Viking Arm™ is virtually unlimited. As you begin to implement this high-quality Norwegian tool, you will shortly discover it’s vast versatility. Making the job easier, saving time, while also saving your back.
Lift, clamp, press or tighten with controlled precision in both directions, thanks to the unique patented lock and release mechanism. Turning a two-man job into a one-man job. This ingenious invention assists it’s user with the installation of doors, windows, cabinets, kitchen appliances, flooring, porches, decks, framing and foundations. The adaptability of this tool will never cease to amaze you.
The Viking Arm™ is the next addition to your arsenal of tools, constructed with high grade carbon steel and light weight aluminium. Capable of lifting heavy objects into millimetre accuracy, with the use one only one hand.
Viking Arm Twin Pack comes in Tool Case. A smaller box for accessories like base plates and spare parts is included. This quality tool case has dimensions W437 mm x H379 mm x D130 mm and comes with hard cut out quality foam insert. Softer protective foam in the lid. Weight without tools 1.9 kg /4.2 lb. Weight with tools included, 4.8 kg / 10.6 lb.
Features:
- Innovative universal tool
- Lift, press, tighten with precision and control
- Impressive capacity for a compact hand tool
- Patented technical solutions
- May substitute multiple “traditional” tools
- Inspires creativity, secures quality and safety
- Increases productivity, saves time and money
- Sturdy and durable construction
- Components of highest quality
- High quality Viking Arm Case with foam insert to hold 2 Viking Arms with small box for extra base plates and spare parts and oil for maintenance
- Viking Arm Cabinet Installation Kit
Recommended load up to 50kg/110lbs
- Non-Slip/Non-Scratch Contact Surface:
- Made from Thermoplastic Elastomer (TPE)
- Soft to the touch and abrasive-resistant protective contact point for all surfaces.
- Construct from PA 30% GF a glass fibre-reinforced polyamide
- Offering greater strength, lighter weight, rigidity, and dimensional stability
- ‘Slide snaps’ onto any Viking Arm Couples onto any Viking Arm® Tool
- 3 levels of extension: 240-450 mm, 315-525 mm, 390-610mm
- 243 – 385 x 115 x 104mm – 0.640 kg
- The telescopic extender is secured with a locking pin
- Spare locking pin is included
Specifications:
- Hardened stainless steel / Aluminum
- Capacity: up to 150 kg = 330 lb
- Operation range (mm): 7-215
- Standard base (mm): 6 x 105 x 87
- Optional base (mm): 3 x 77 x 62
- Mounting holes for safe operations
- Weight: 1,4 kg = 3,0 lb
- Extensively tested by FIMTECH (Norway)
- Tool case dimensions (130 x 437 x 379mm)
