Distar Glider 45 – 45° Mitre Cutting Tool for 5" Angle Grinders - 71419034037

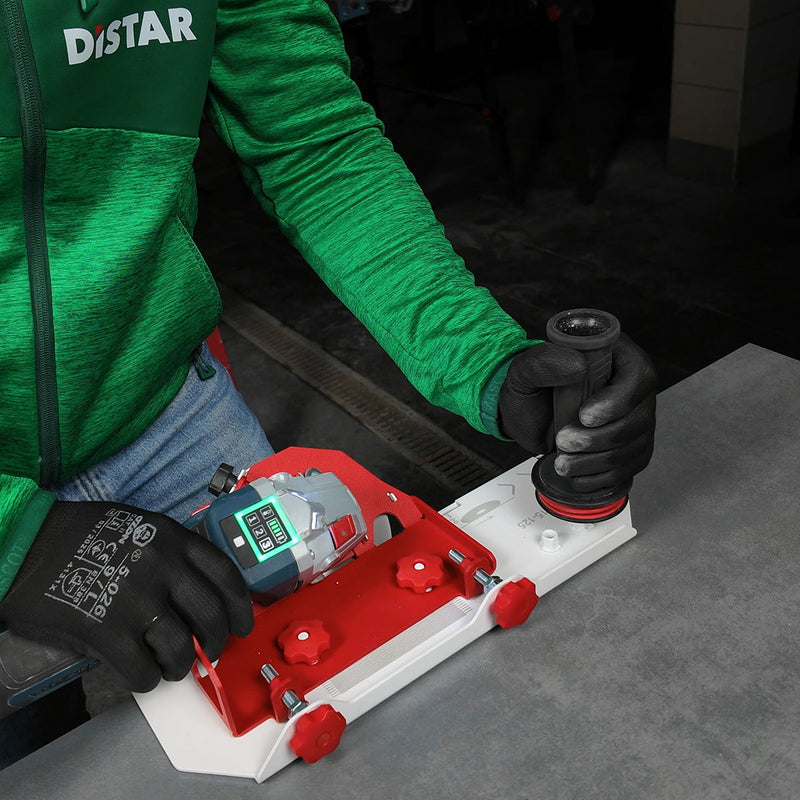

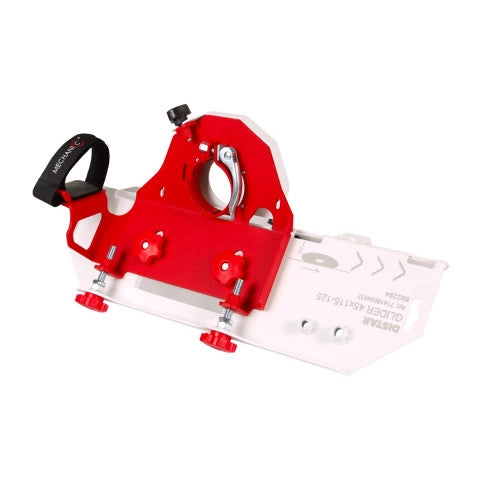

The Distar Glider 45 is a 45° tile mitre cutting tool that mounts directly to any 4.5–5" (115–125mm) angle grinder via a universal gearbox attachment. Cut precise, consistent 45° bevels on porcelain and ceramic tile with zero vibration and professional accuracy — no wobble, no guesswork. Handles tiles from 600mm to 3600mm long and material up to 14mm thick, with integrated adjustable dust extraction and a scratch-resistant base to protect high-gloss surfaces throughout the cut.

Key Features

• Precision 45° Bevel Cutting: Guided cutting system locks in the bevel angle for consistent mitre joints on porcelain and ceramic — no dedicated tile saw required.
• Universal Angle Grinder Mount: Fits any 4.5–5" angle grinder via included adapter ring set. No dedicated machine needed.
• Integrated Adjustable Dust Extraction: Built-in dust extraction with vacuum adapter keeps the work area clean during dry cutting.
• Scratch-Resistant Base: Protects tile faces from scratching during the cut — critical for high-gloss and polished porcelain.
• Reversible for Small Pieces: Flip upside down on a table to safely cut small tile pieces that are difficult to handle freehand.
• 50–52° Cutting Angle: Slightly over-bevel reduces the need for additional grinding on the finished edge.
• Large Format Compatible: Works on tiles from 600mm up to 3600mm in length.

Specifications

• SKU: 71419034037
• Brand: Distar / Mechanic
• Compatible grinders: 4.5–5" (115–125mm) angle grinders
• Max material thickness: 14mm (½")
• Workpiece length range: 600–3600mm
• Cutting angle: 50–52°
• Dust extraction: Yes — adjustable, with vacuum adapter
• Base: Scratch-resistant
• Kit includes: Body with dust extraction, vacuum adapter, protective guard, adapter ring set, support washer

Common Applications

• 45° mitre cuts for seamless porcelain corner installations
• Ceramic tile bevel joints on walls and floors
• High-end interior finishing with exposed tile edges
• Large-format tile mitre work (up to 3600mm)
• Small tile piece cutting (table-mounted, reversed)

Usage Tips

• Mount to a 4.5–5" angle grinder using the included adapter ring set
• Connect vacuum adapter for dust-free operation
• Set cutting depth for your tile thickness (up to 14mm)
• For small pieces, flip the tool upside down and use on a stable table surface
• Use with a compatible 45° diamond blade for best edge quality
