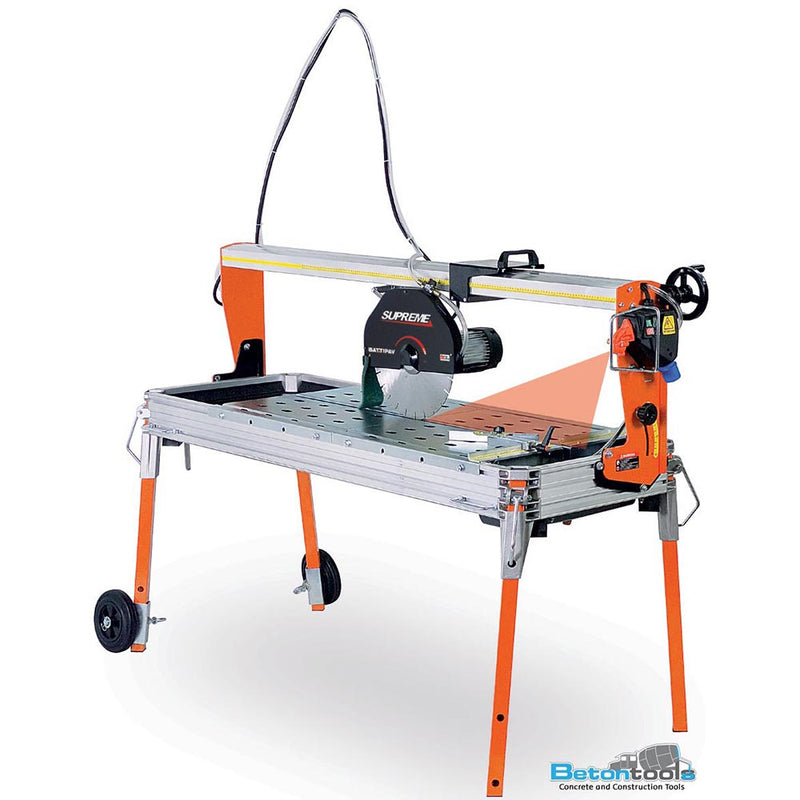

Battipav With Wheels, Laser, Lead & Plunge Handle 1200mm SUPREME-120S
SKU SUPREME-120S
by Battipav
Save 25%
Original price
$7,886.69
Original price
$7,886.69
-
Original price
$7,886.69
Original price
$7,886.69
Current price
$5,900.00
+GST
$5,900.00
-
$5,900.00
Current price
$5,900.00
+GST
Availability:
In stock
Bridge saw ideal for the building sector suitable for straight and 45° angle cuts of natural-stones, granite and marble slabs.
SUPREME is a bridge saw ideal for cutting natural stones, granite and marble slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk ˜300 mm.
Laser instrument and kit wheels are supplied standard or as optionals.
Equipped with:
- Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
- Switch with release coil
- Overheat protection with manual reset
- Sliding cutting head and tilting engine
- Cutting progress system with hand wheel
- Laser instrument
- Kit wheels
- Adjustable legs
- Adjustable goniometer fence
- Water recycling pump type S3
- Disk ˜ 300 not included.
Specification:
- MACHINE'S DIMENSION IN STOCK: 72x195x101 cm
- MAX CUTTING LENGHT: 1200 mm
- SIZE TILE FOR DIAGONAL CUTTING: 845x845 mm
- POWER ENGINE: 3Hp/2,2Kw, 9A
- MAX CUTTING THICKNESS: 85 mm
- MAX CUTTING DEPTH FOR 45° (JOLLY) CUT: 60 mm
- LASER INSTRUMENT: Standard
- ENGINE TYPE: SINGLE-PHASE 230V~50Hz
- TOOL HOLE: 25,4 mm
- MAX CUTTING DEPTH WITH 2 RUNS: 135 mm
- DIAMOND BLADE DIAMETER: 300 mm
- ROTATION SPEED: 2800rpm
- AMPEROMETRIC PROTECTION: 13 A
- SIDE BENCH DIMESION: 1185x625 mm
- MACHINE'S DIMENSION: 1980x900x H1280 mm
- WEIGHT: 90 kg
- THERMIC PROTECTION: 160°C
- FENCE: Standard
- WATER PUMP: S3
- WATER TANK CAPACITY: Min. 26/ Max.41 liters
- SIDE TILE SUPPORT: Optional
- LONG SLOT FOR SIDE TILE SUPPORT: Optional
- CUTTING PROGRESS SYSTEM: Standard
- SIDE BANCH WITH ROLLERS: Optional
- EXTENSION SIDE BENCH: Optional
- WHEELS: Standard
