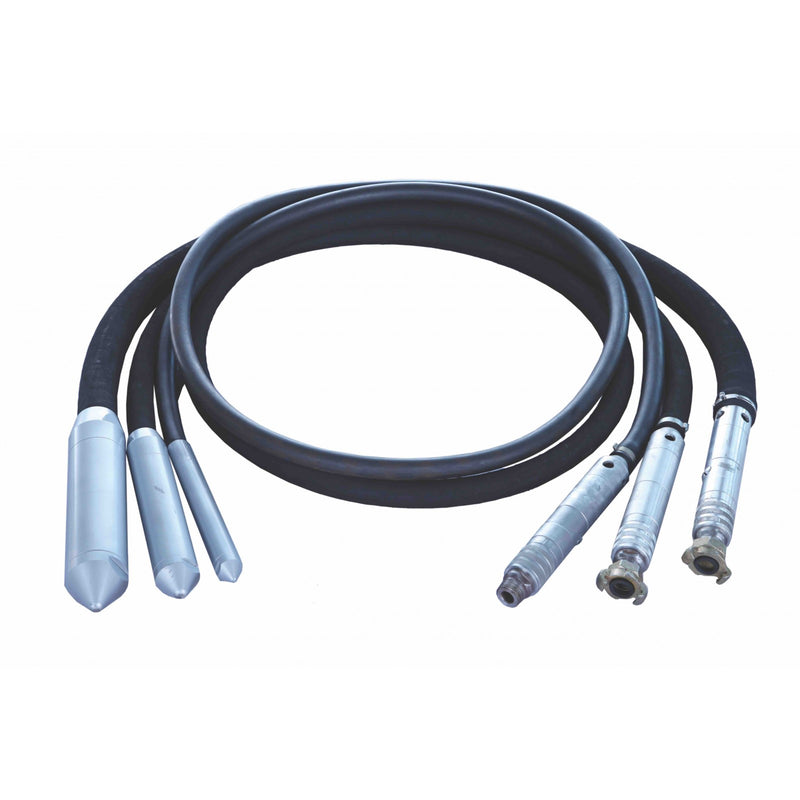

Hoppt HAV75 75mm x 4m Air-Powered Concrete Vibrator
Hoppt HAV75 75 mm x 4 m Air-Powered Concrete Vibrator is a pneumatic unit for consolidating freshly placed concrete. It combines a 75 mm vibrating head with a 4 m hose for use with a suitable compressed-air supply.
Key Features
- Air-powered concrete vibrator
- 75 mm diameter vibrating head
- 4 m hose length
- Listed 1.2 mm vibration amplitude
- Listed air consumption of 1.3 m³/min
Listed Specifications
- Brand: Hoppt
- Model / SKU: HAV75
- Product type: pneumatic concrete vibrator
- Power source: compressed air
- Head diameter: 75 mm
- Head length: 398 mm
- Head weight: 8.9 kg
- Amplitude: 1.2 mm
- Listed frequency: 16,900 rpm
- Hose length: 4 m
- Air consumption: 1.3 m³/min
Compressed-Air Supply
Confirm the required operating pressure, air connection and compressor capacity before ordering. Match the compressor's delivered airflow at the required pressure, not just its advertised displacement. Operating pressure and fitting details are not specified in the existing listing.
Choosing the Right Head Size
Check that the 75 mm head suits the formwork access, reinforcement spacing and concrete placement requirements. The listed 8.9 kg weight is for the vibrating head, not a confirmed total assembly weight.
