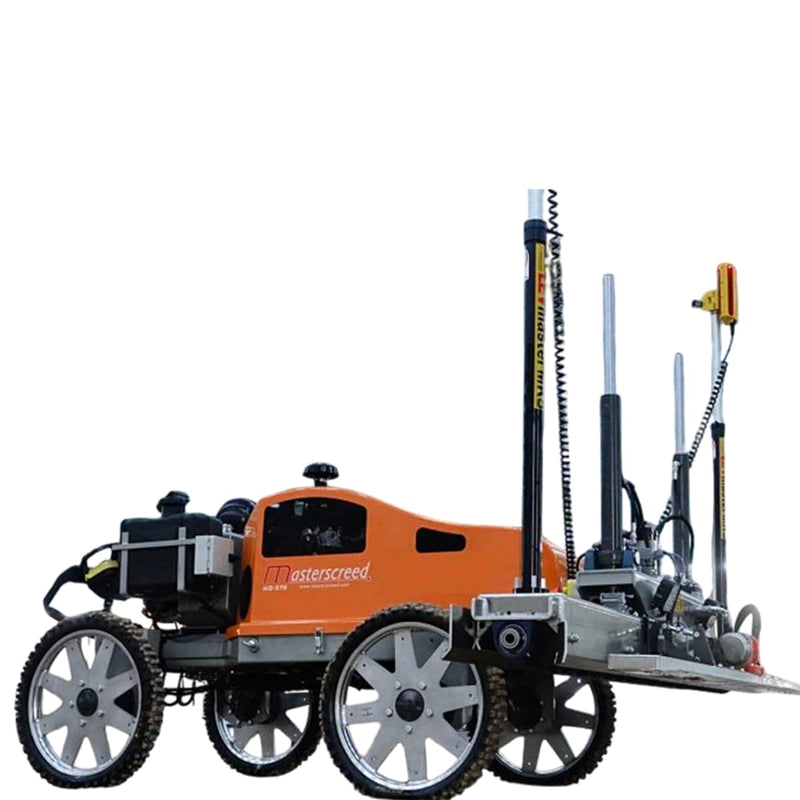

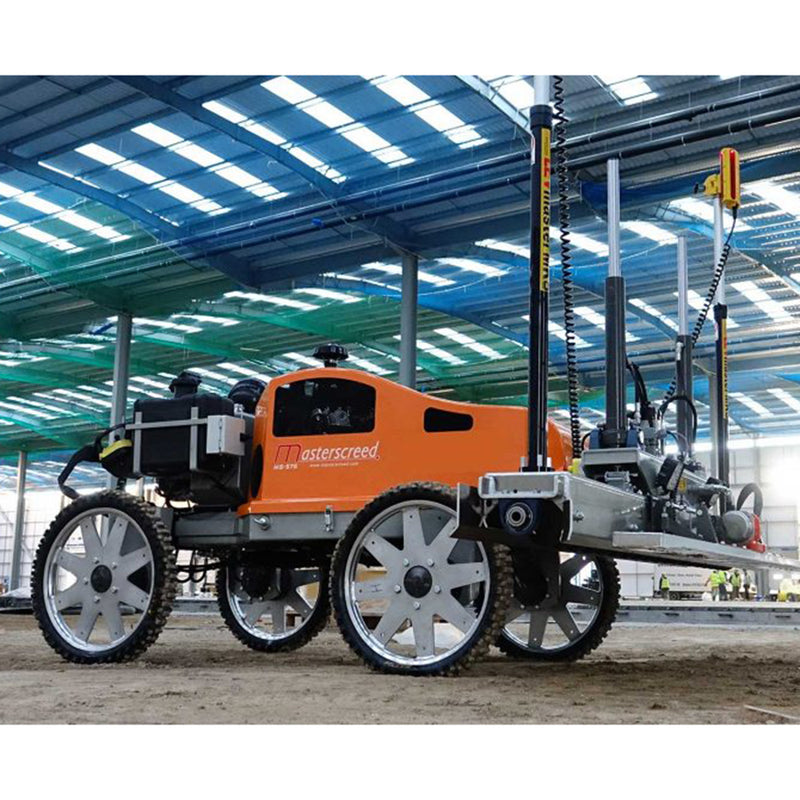

Masterscreed MS575 Robotic Screed | 37hp Vanguard EFI Engine
Masterscreed MS575 Robotic Screed | 37hp Vanguard EFI Engine
The MS575 is the largest machine in Masterscreed’s small machine line-up, fitted with a Vanguard 37hp EFI gasoline engine delivering high power with low fuel consumption and a 3-year engine warranty.
Equipped with the LEVmaster Ultimate advanced operating system, the MS575 features ground-breaking technology that allows the operator to fine-tune the machine to different applications for ultimate performance.
Auto calibration — customised auto calibration valves and sensors consistently achieve great results across varying conditions.
Remote diagnostics — optional wireless remote diagnostics allow Masterscreed technicians to remotely diagnose faults, change settings, and take corrective action from anywhere in the world, minimising downtime.
Variable vibrator — the LEVmaster Ultimate is fitted with a variable vibrator allowing the operator to adjust vibration force and speed via remote for ultimate compaction.
Concrete slump settings — seven selectable slump settings (low to high) allow the MS575 to perform at its best across all concrete slump types.
2-in-1 screed head — the new design screed head allows contractors to use either the auger or double beam head to cater for all applications.
MX wheels — fitted with MX tyres featuring a unique puncture-proof inner tube for uninterrupted operation.
3D / GPS and Sonar Sonic — fully compatible for multi-grade applications.
Laser grade set-up — laser receiver mast fitted on the edge of the screed head for accurate positioning; datum levels can be set in seconds.
Data logging — optional data logger allows contractors to record each job, downloadable and printable in graph format.
The MS575 is constructed from premium-grade materials for superior strength while reducing weight, suitable for rebar mesh, upper-level floors, and ground slabs. An onboard pressure washer makes post-pour cleaning faster and easier.
Specifications
- Engine: Vanguard 37hp EFI gasoline — 3-year warranty
- Drive system: 4WD hydraulic
- Steering system: Two-wheel hydraulic (rear)
- Elevation control: LEVmaster™ MK5 advanced operating system
- Machine operation: Wireless remote
- Laser receivers: Trimble® 2 x LR410
- Machine width: 1.05m (3'6")
- Machine length: 2.45m (8ft)
- Machine height: 1.6m (5'2")
- Weight: 575kg (1,270lb)
- Fuel tank: 25L (6.6 gallons)
- Pressure washer: 2,000psi (optional)
- Automated self-levelling
- 3D ready, GPS & sonar sonic compatible
