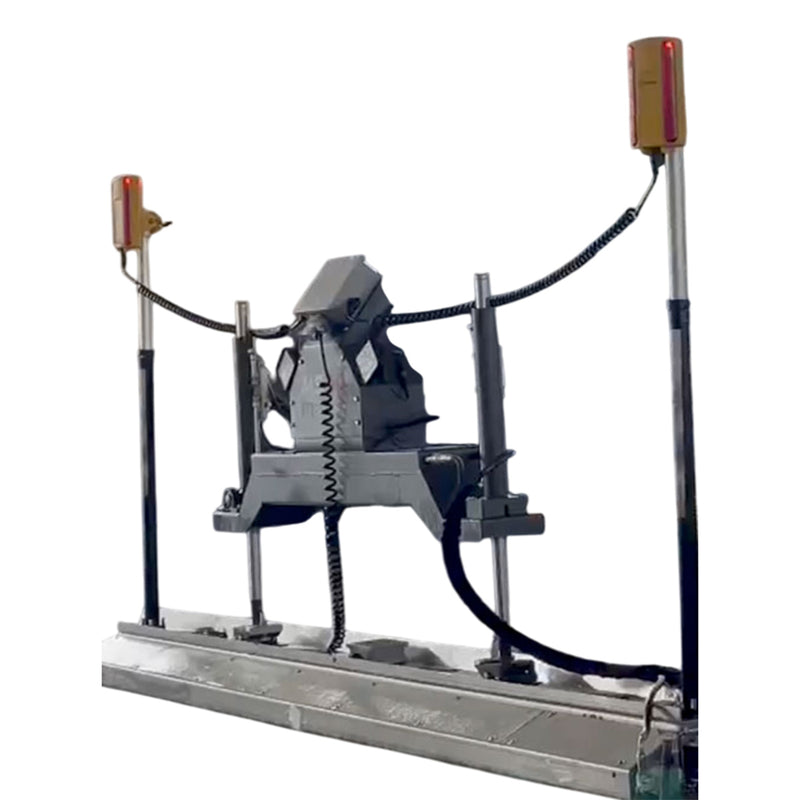

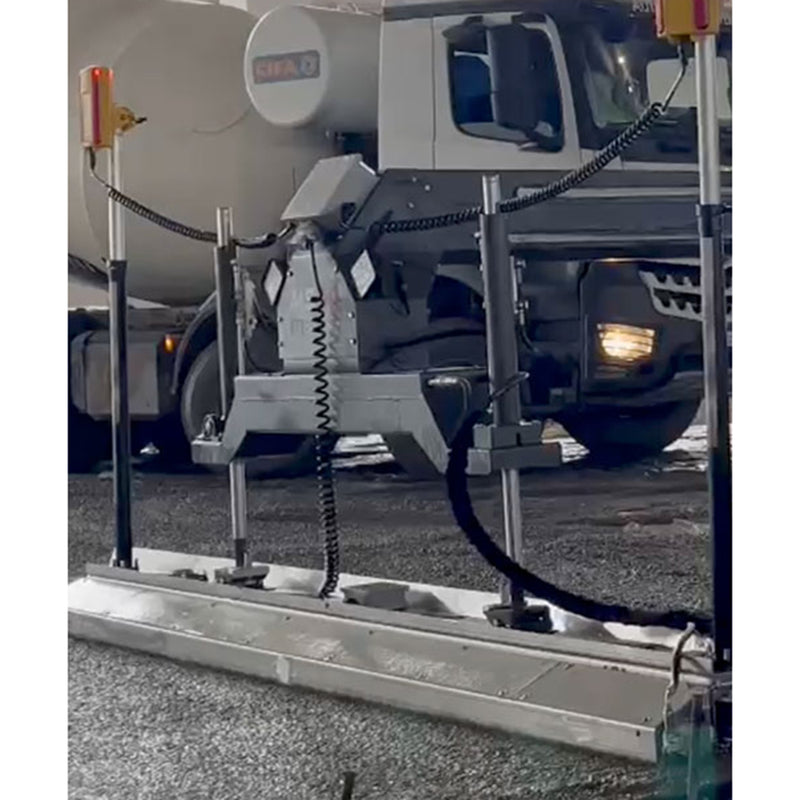

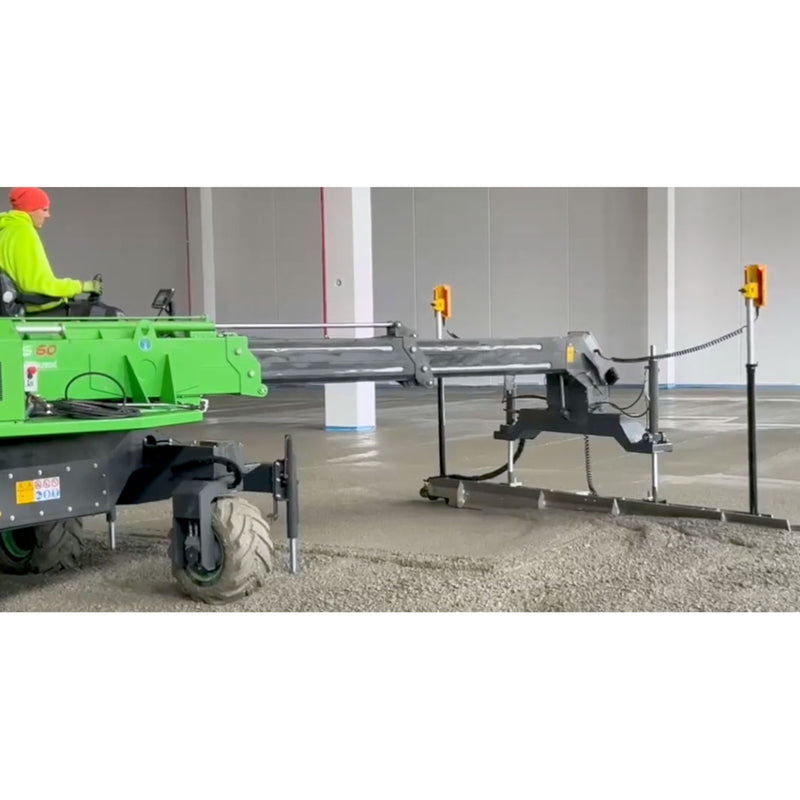

Masterscreed MS60 Large Line Robotic Screed with Rotating Boom and Head
Masterscreed MS60 Large Line Robotic Screed with Rotating Boom and Head
The MS60 is the world’s first large line screed with rotating boom, rotating head, and 180-degree steering, offering unmatched manoeuvrability and comfort on the job site.
The MS60 is equipped with the LEVmaster Ultimate advanced operating system — featuring ground-breaking technology that allows the operator to fine-tune the MS60 to different applications for ultimate performance.
Remote diagnostics — optional wireless remote diagnostics allow Masterscreed technicians to remotely diagnose faults, change settings, and take corrective action from anywhere in the world, minimising downtime.
Variable vibrator — the LEVmaster Ultimate is fitted with a variable vibrator allowing the operator to adjust vibration force and speed via remote for ultimate compaction.
Auto calibration — customised auto calibration valves and sensors consistently achieve great results across varying conditions.
Concrete slump settings — seven selectable slump settings (low to high) allow the MS60 to perform at its best across all concrete slump types.
3D / GPS and Sonar Sonic — fully compatible for multi-grade applications.
Laser grade set-up — laser receiver mast fitted on the edge of the screed head for accurate positioning; quick grade set-up allows datum levels to be set in seconds.
Data logging — optional data logger allows contractors to record each job, downloadable and printable in graph format.
The MS60 is constructed from premium-grade materials for superior strength while reducing weight, making it suitable for many applications and easy to transport. An onboard pressure washer makes post-pour cleaning faster and easier.
Specifications
- Boom length: 6m (20ft)
- Screed width: 3.6m (12ft); 4m (14ft) optional
- Machine width: 1.9m (6'2")
- Machine length: 4.9m (16ft)
- Weight: 2,650kg (5,850lb)
- Engine: Kubota 19kW (25hp) 4-cylinder EFI diesel — 2-year warranty
- Steering: Automated 90-degree configuration for easy job site access
- Boom: Rotating telescopic
- Screed head: Rotating (optional)
- Operation: Single joystick + full radio control
- Elevation control: LEVmaster Ultimate advanced operating system
- Automated self-levelling
- 3D ready, GPS & sonar sonic compatible
