Mikasa MVH-308DSY Reversible Plate Compactor 341kg Yanmar L70N Diesel FT272783

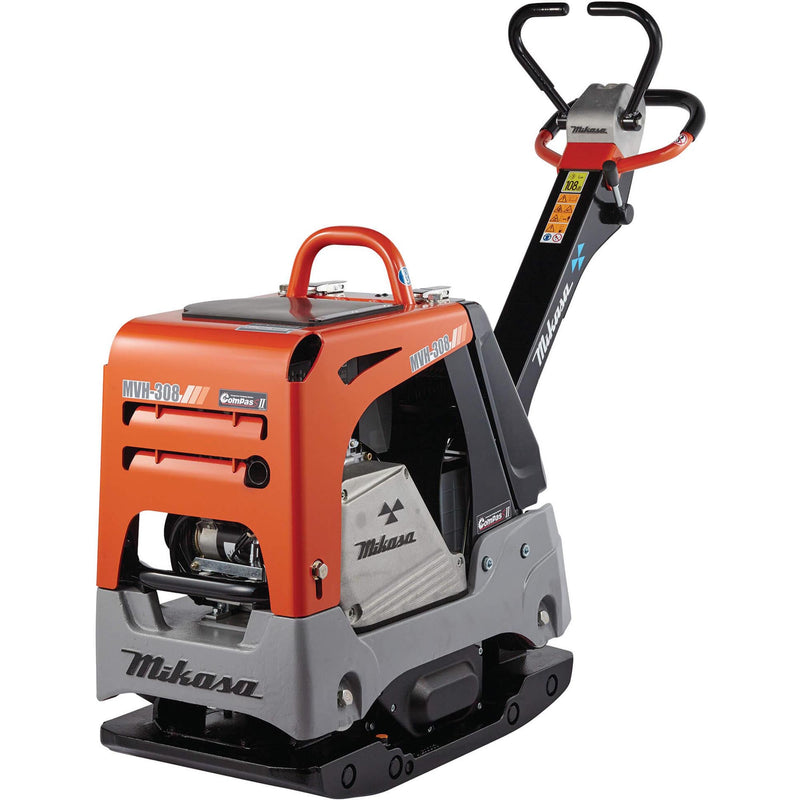

Mikasa MVH-308DSY Reversible Plate Compactor 341kg — Yanmar L70N Diesel with Compas II & Extension Plates (FT272783-UNIT)

The Mikasa MVH-308DSY is the top-of-range diesel reversible plate compactor in the Mikasa lineup, delivering 45kN centrifugal force for high-output compaction of sand, gravel, and cohesive soils on large civil, road, and trench projects. The Yanmar L70N diesel engine provides low fuel consumption and long-term reliability, suited to sites without petrol supply and high-utilisation rental and civil applications. The 445 x 860mm base plate is expandable to 595 x 860mm with removable extension plates, adapting plate width to match job requirements. Equipped with Mikasa’s proprietary Compas II compaction monitoring system as standard. Backed by a 3-year Mikasa warranty.

Key Features

• Mikasa Compas II compaction monitoring system — proprietary system for real-time compaction performance monitoring on site
• Removable extension plates — expands base plate from 445 x 860mm to 595 x 860mm to match job width requirements (150mm extension plates included)
• Forward/reverse control lever with built-in actuator — seamless direction change between forward and reverse without stopping, ideal for trench and confined space compaction
• Yanmar L70N diesel engine — hassle-free operation, low fuel consumption, long-term reliability; suited to sites without petrol supply and high-utilisation applications
• 45kN centrifugal force — maximum compaction output for large-scale road, civil, and trench projects
• 963m²/hr max compacted area — highest productivity in the Mikasa reversible plate range
• Cyclonic air filtration system — superior air filtration for extended service intervals and improved engine protection
• Engine hour meter and tachometer — efficiently manage service intervals and monitor rpm for optimum compaction performance
• Anti-vibration adjustable handle — reduced hand and arm vibration transfer to the operator; height-adjustable for improved comfort
• Hinge-design full engine protection frame — robust engine protection with simplified maintenance access via hinged frame
• Sealed clutch and belt guard — protects clutch components and V-belt from dust and debris ingress
• Central lifting hook — safe and easy onsite crane or strap handling
• Suited to sand, gravel, cohesive soils, trench compaction, civil construction, drainage, and rental industry
• 3-year Mikasa warranty

Specifications

• SKU / Part Number: FT272783-UNIT
• Model: MVH-308DSY
• Operating Weight (without extension plates): 341kg
• Operating Weight (with extension plates): 361kg
• Base Plate Size (without extension plates): 445 x 860mm
• Base Plate Size (with extension plates): 595 x 860mm
• Engine Make: Yanmar
• Engine Model: L70N
• Max Rated Power: 6.7Hp
• Fuel Type: Diesel
• Centrifugal Force (Max): 45kN
• Vibration Frequency: 4400 vpm
• Max Travel Speed: 27 m/min
• Max Gradeability: 35%
• Max Compacted Area: 963 m²/hr
• Direction Control: Hydraulic forward/reverse lever with built-in actuator
• Air Filtration: Cyclonic system
• Engine Hour Meter: Yes, with tachometer
• Compaction Monitor: Mikasa Compas II
• Extension Plates: Yes, removable 150mm (included)
• Warranty: 3 years (Mikasa)
• Barcode: 9300611572783
