Mikasa MVH-508DSZ Reversible Plate Compactor 525kg Hatz Diesel FT28DSZN

Mikasa MVH-508DSZ Reversible Plate Compactor 525kg — Hatz 1D81S Diesel with Compas II & Extension Plates (FT28DSZN-UNIT)

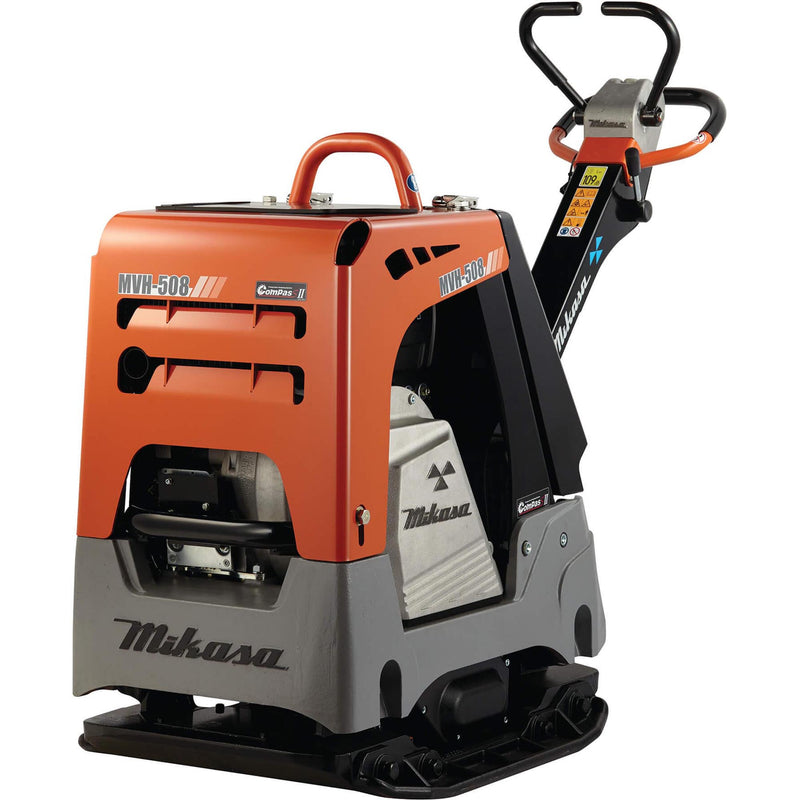

The Mikasa MVH-508DSZ is the largest and most powerful reversible plate compactor in the Mikasa range, delivering 65kN centrifugal force and 1392m²/hr compaction output for the most demanding civil, road, and trench compaction projects. The Hatz 1D81S 14.1Hp diesel engine provides low fuel consumption and long-term reliability in the most demanding high-utilisation rental and civil environments. The wide 650 x 900mm base plate is expandable to 800 x 900mm with removable extension plates to match job width requirements. Equipped with Mikasa’s proprietary Compas II compaction monitoring system as standard. Backed by a 3-year Mikasa warranty.

Key Features

• Mikasa Compas II compaction monitoring system — proprietary system for real-time compaction performance monitoring on site
• Removable extension plates — expands base plate from 650 x 900mm to 800 x 900mm to match job width requirements
• Forward/reverse control lever with built-in actuator — seamless direction change between forward and reverse without stopping, ideal for trench and confined space compaction
• Hatz 1D81S 14.1Hp diesel engine — hassle-free operation, low fuel consumption, long-term reliability in high-utilisation applications
• 65kN centrifugal force — highest compaction output in the Mikasa reversible plate range
• 1392m²/hr max compacted area — maximum productivity for large-scale civil, road, and trench projects
• Cyclonic air filtration system — superior air filtration for extended service intervals and improved engine protection
• Engine hour meter and tachometer — efficiently manage service intervals and monitor rpm for optimum compaction performance
• Anti-vibration adjustable handle — reduced hand and arm vibration transfer to the operator; height-adjustable for improved comfort
• Hinge-design full engine protection frame — robust engine protection with simplified maintenance access via hinged frame
• Sealed clutch and belt guard — protects clutch components and V-belt from dust and debris ingress
• Central lifting hook — safe and easy onsite crane or strap handling
• Suited to sand, gravel, cohesive soils, trench compaction, civil construction, drainage, and rental industry
• 3-year Mikasa warranty

Specifications

• SKU / Part Number: FT28DSZN-UNIT
• Model: MVH-508DSZ
• Operating Weight (without extension plates): 525kg
• Operating Weight (with extension plates): 567kg
• Base Plate Size (without extension plates): 650 x 900mm
• Base Plate Size (with extension plates): 800 x 900mm
• Engine Make: Hatz
• Engine Model: 1D81S
• Max Rated Power: 14.1Hp
• Fuel Type: Diesel
• Centrifugal Force (Max): 65kN
• Vibration Frequency: 4150 vpm
• Max Travel Speed: 29 m/min
• Max Gradeability: 35%
• Max Compacted Area: 1392 m²/hr
• Direction Control: Hydraulic forward/reverse lever with built-in actuator
• Air Filtration: Cyclonic system
• Engine Hour Meter: Yes, with tachometer
• Compaction Monitor: Mikasa Compas II
• Extension Plates: Yes, removable (included)
• Warranty: 3 years (Mikasa)
• Barcode: 9300611572769
