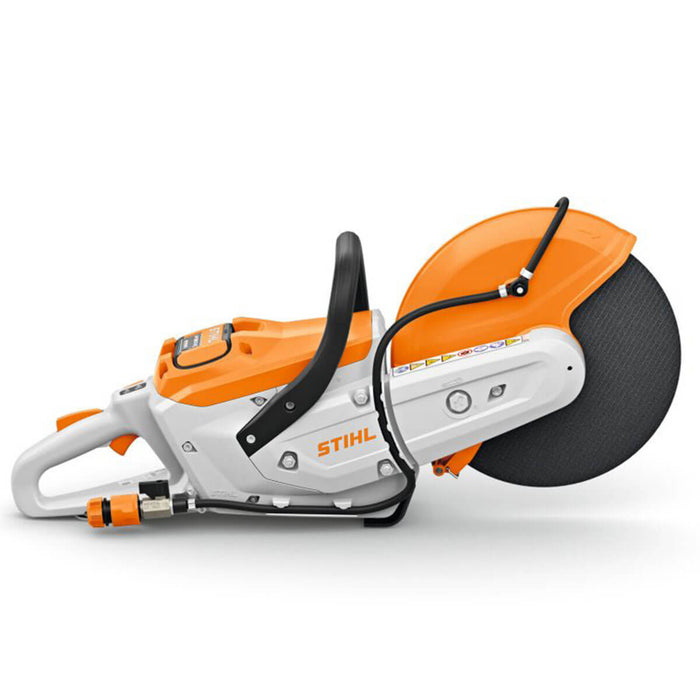

STIHL TA02 011 6606 TSA 300 Battery Cut-Off Machine AP System - Skin Only

The compact STIHL TSA 300 battery cut-off machine from the AP System is versatile and ideal for professionals in horticulture and landscaping, construction and civil engineering, as well as rescue services and the fire brigade. For efficient processing of materials such as bricks, paving stones, natural stone, concrete, reinforced concrete and rebar, the STIHL TSA 300 comes as standard with a powerful, durable 300 mm resin cutting disc. It is characterised by superior cutting performance, high precision and low noise emissions during the cutting process. The compact design allows a maximum cutting depth of 110 mm.

The powerful EC motor operates almost wear-free, is quiet and is characterised by smooth running and low vibrations. In addition, the electronic control system ensures that the TSA 300 operates at optimum performance throughout the entire battery life. The battery cut-off machine is equipped with the STIHL magnetic filter to protect the engine from metal dust and metal particles and ensures a long service life. For frequent cutting work with steel, it is easy to clean.

The compact design, low weight and ergonomic handle design ensure that you can guide the TSA 300 precisely and safely when cutting. Another benefit is the fast-stop brake with recuperation function. It brakes the cut-off wheel within seconds - and you can continue working almost immediately. During braking, the kinetic energy is converted into electrical energy and fed into the battery. This increases the battery life. Thanks to its emission-free operation, the TSA 300 battery cut-off machine can also be used indoors. With the standard water connection, the dust can be efficiently bound both inside and outside. This enables efficient work with reduced strain.

All battery power tools within the STIHL AP System have been designed for regular professional use, even in adverse weather conditions. For this reason, they are certified as splashproof. The effectiveness of this is also verified through demanding internal tests. The splashwater test is aligned with the IPX4 standard, among others. The STIHL TSA 300 is also suitable for use in rainy conditions.

Overseas model shown in images. TSA 300 supplied as standard with Resin Blade - Metal Blades, adaptors and accessories are available as accessories sold seperately.

Our overview of STIHL battery life and charging times shows how long you can work with your STIHL TSA 300 battery cut-off machine and how long the battery used takes to charge.

Battery life with recommended AP 500 S battery: Up to 20 min

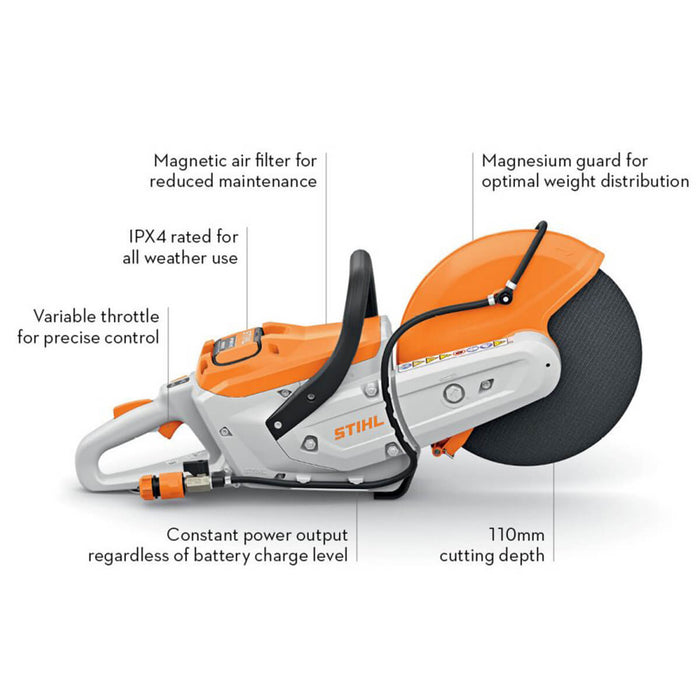

Features:

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.

EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.

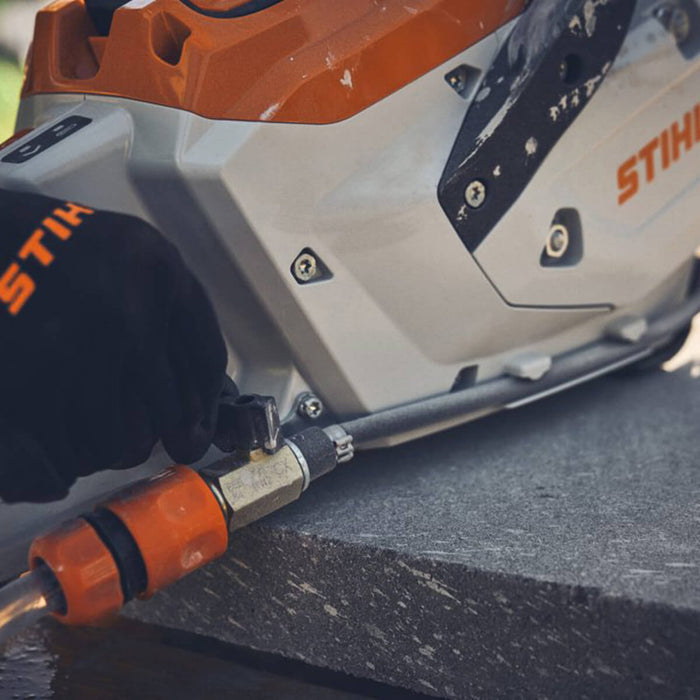

FOR DUST BINDING AND COOLING. When working with your power tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the power tool, this rinsing is easy and permanently assured.

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.

Key Features:

• For horticulture and landscaping, construction and below-ground works and rescue services
• Individual tool without battery and without charger
• Very powerful, versatile professional battery-powered cut-off machine
• Energy-efficient, low-maintenance engine
• STIHL magnetic filter for a long service life
• For 300 mm cutting wheels

Specifications:

• Rated voltage: 36 V
• Power consumption: 3 kW
• Power: 2.50 kW 1)
• Cordless power system: AP
• Recommended battery: AP 500 S
• Device weight without battery: 6.3 kg 2)
• Cutting disk diameter: 300 mm
• Max. cutting depth: 110 mm
• IPX Rating: IPX4
• Min. battery working time AP 200 S: 5 min 3)
• Max. battery working time AP 200 S: 9 min 3)
• Min. battery working time AP 300 S: 9 min 3)
• Max. battery working time AP 300 S: 16 min 3)
• Min. battery working time AP 500 S: 12 min 3)
• Max. battery working time AP 500 S: 22 min 3)
• Device length with cutting disc: 74.2 cm
