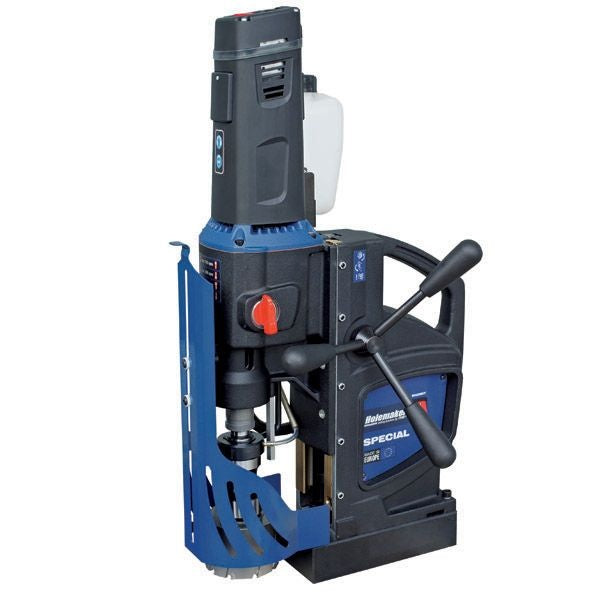

Holemaker 120mm X 110mm 240V Special 110 Magnetic Base Drill 3MT

Holemaker Special 110 Magnetic Base Drill, 240V, 3MT, Capacity: 120mm Diameter X 110mm Depth

#3 MORSE TAPER UNIVERSAL TAPPING & DRILLING MACHINE

The Holemaker Special 110 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine's forward & reverse work modes with variable speed adjustment allows thread cutting up to M30 of through holes and M30 blind holes.

Features

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic variable speed control
• Electronic clutch
• Overload and overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a metal carry case with cutter guard & safety strap

Tapping applications require optional tapping head and collets

Specifications

• Capacity ( Diameter ): 120mm
• Capacity ( Depth ) : 110mm
• Twist drill capacity: 32mm
• Tap capacity: M30
• #3 Morse Taper spindle
• 2150 Watt 240V motor
• 4 Speed variable gearbox (75-110 / 135-200 / 220-320 / 390-570rpm)
• Lightweight, only 25kg
• 18,000Nm Magnetic dead lift on 25mm steel plate
• 225mm Stroke

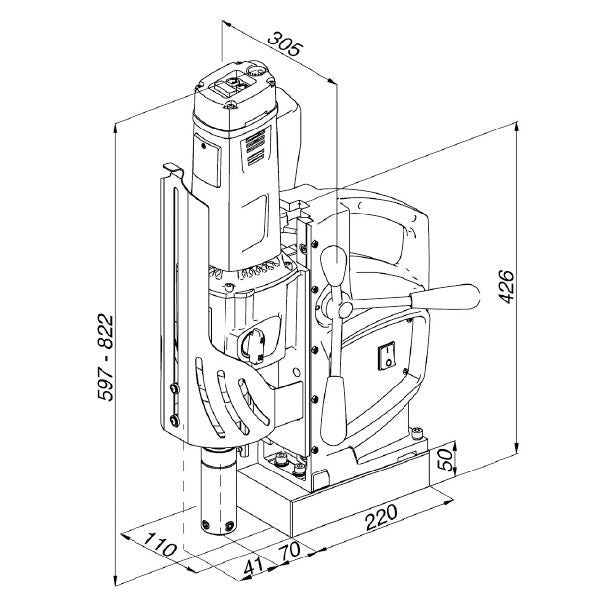

• Height 597mm min / 822mm max
