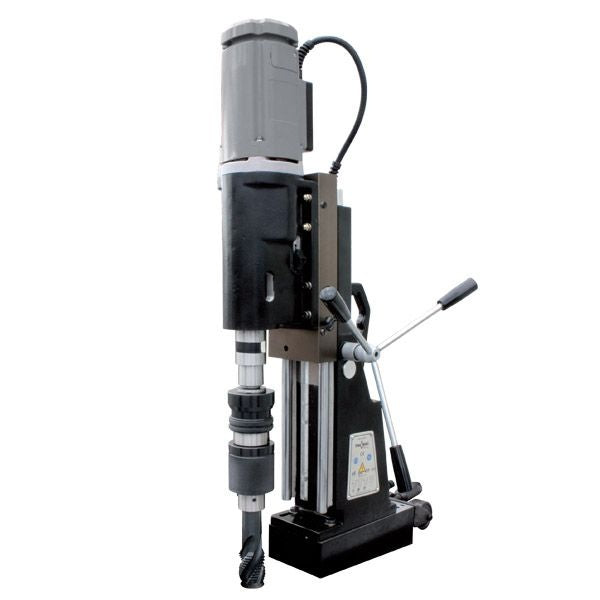

Holemaker 200mm X 310mm 240V Tap 50 Magnetic Base Drill, 5MT, 3KW / M55 Tap

Holemaker Tap 50 Magnetic Base Drill, 5MT, 3KW 240V, Capacity: 200mm Diameter X 310mm / M55 Tap

Features

The TAP 50 is a portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity (with optional tapping head) TAP 50 has a 3.0kW single phase 240V motor. The spindle bore is No.5 Morse Taper. The TAP 50 is designed for special and challenging applications that no other portable magnetic drill has been able to solve before.

• Feed handles can be placed on the left or right sides of the machine.
• Reversible.
• Heavy duty dual rail slides provide rigidity and quick movement

Specifications

• Capacity (Diameter): 200mm
• Capacity (Depth): 250mm
• Capacity (Tapping): 52mm
• Capacity (Twist Drill): 52mm
• Motor Power: 2850 watt
• Input Power: Single Phase 240V
• Gearbox: 4 Speed Gearbox with electronic Hi/Low - 40/60. 90/130, 170/240, 380/545RPM
• Weight: 52.0kg
• Stroke: 330mm
• Height (min/max): 730mm / 955mm
• Video below shows machine with OPTIONAL large pressure feed coolant bottle
