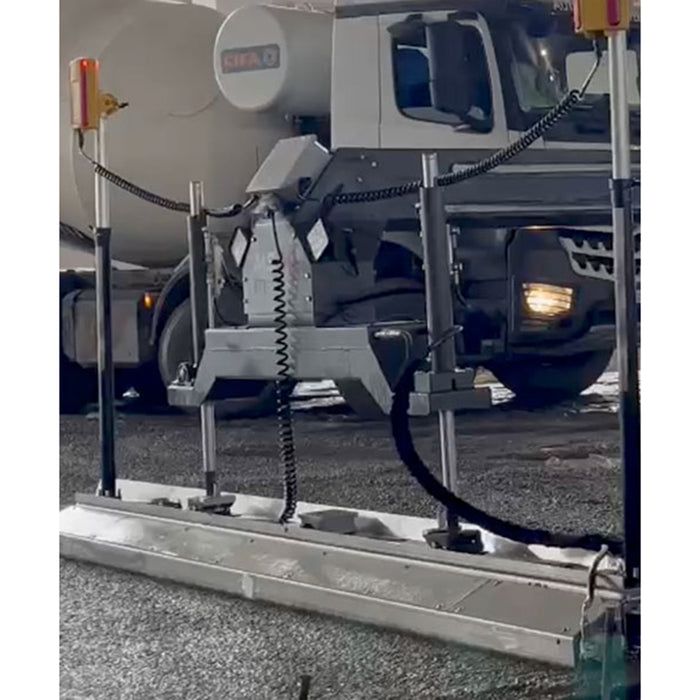

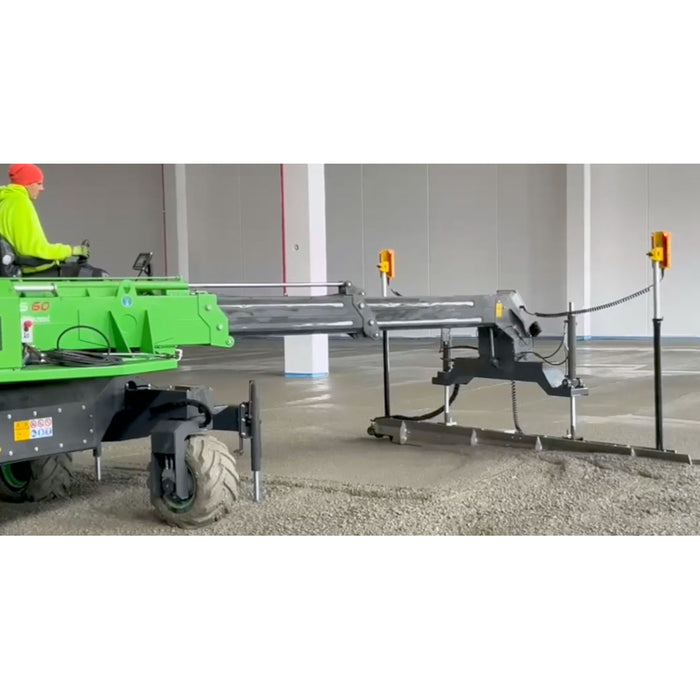

Masterscreed MS60 Large Line Robotic Screed with Rotating Boom and Head
The MS60 is the world’s first large line screed with rotating boom, rotating head, and 180-degree steering, offering unmatched manoeuvrability and comfort on the job site.
The MS60 is equipped with the LEVmaster Ultimate advanced operating system — featuring ground-breaking technology that allows the operator to fine-tune the MS60 to different applications for ultimate performance.
Remote diagnostics — optional wireless remote diagnostics allow Masterscreed technicians to remotely diagnose faults, change settings, and take corrective action from anywhere in the world, minimising downtime.
Variable vibrator — the LEVmaster Ultimate is fitted with a variable vibrator allowing the operator to adjust vibration force and speed via remote for ultimate compaction.
Auto calibration — customised auto calibration valves and sensors consistently achieve great results across varying conditions.
Concrete slump settings — seven selectable slump settings (low to high) allow the MS60 to perform at its best across all concrete slump types.
3D / GPS and Sonar Sonic — fully compatible for multi-grade applications.
Laser grade set-up — laser receiver mast fitted on the edge of the screed head for accurate positioning; quick grade set-up allows datum levels to be set in seconds.
Data logging — optional data logger allows contractors to record each job, downloadable and printable in graph format.
The MS60 is constructed from premium-grade materials for superior strength while reducing weight, making it suitable for many applications and easy to transport. An onboard pressure washer makes post-pour cleaning faster and easier.
Specifications
- Boom length: 6m (20ft)
- Screed width: 3.6m (12ft); 4m (14ft) optional
- Machine width: 1.9m (6'2")
- Machine length: 4.9m (16ft)
- Weight: 2,650kg (5,850lb)
- Engine: Kubota 19kW (25hp) 4-cylinder EFI diesel — 2-year warranty
- Steering: Automated 90-degree configuration for easy job site access
- Boom: Rotating telescopic
- Screed head: Rotating (optional)
- Operation: Single joystick + full radio control
- Elevation control: LEVmaster Ultimate advanced operating system
- Automated self-levelling
- 3D ready, GPS & sonar sonic compatible
