Maxisafe AirDefence X1 PAPR Respirator Kit (R1400)

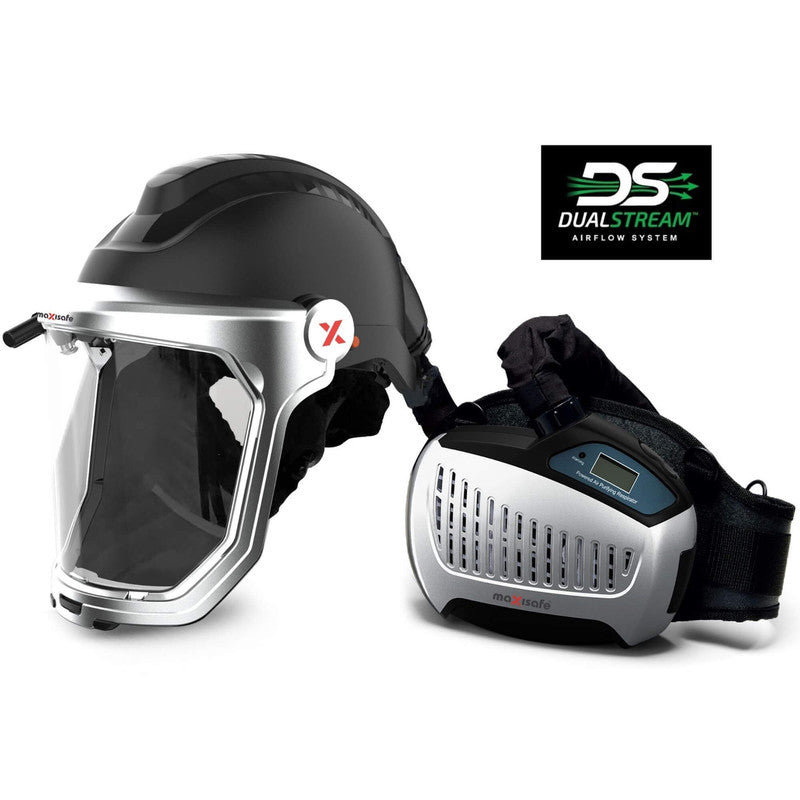

Maxisafe AirDefence X1 PAPR Respirator Kit (R1400) combines a powered air-purifying respirator with a hard hat and visor. The kit includes P3 particle filters, a battery and charger, a flow indicator and a storage bag for keeping the system together between jobs.

Key Features

• DualStream airflow system
• Three selectable airflow settings: 170, 200 and 230 L/min
• Adjustable airflow direction: face only or head and face
• Automatic fan-speed adjustment
• System alerts for blockage, battery, overheating and airflow issues
• Flip-up visor with unlock button
• Independent lens operation and face shroud design
• Four-point adjustable head harness
• Adjustable waist harness

Listed Kit Contents

• Hard hat with high-impact visor
• PAPR belt unit
• P3 particle filters and pre-filters
• Spark arrester
• Li-ion battery and charger
• Flow indicator
• Storage bag

System and Replacement-Part References

The following codes identify system components and replacement parts. This list is not a statement that additional spare parts are included.

• R1401: belt unit
• R1402: PAPR helmet
• R1403: P3 particle filter
• R1404: pre-filter
• R1405: air spark arrester
• R1406: Li-ion battery
• R1407: charger
• R1408: replacement visor
• R1409: replacement breathing hose, 60 cm
• R1410: anti-fire breathing-hose cover, 60 cm
• R1411: replacement waist belt

Standards Listed in the Existing Product Information

Confirm the current manufacturer documentation and certification scope for the supplied R1400 configuration before relying on these references.

• AS/NZS 1716:2012, with face shroud clause 2.1.9 referenced for protection from flame impingement
• EN 397
• EN 12941 TH3
• EN 16321
• AS/NZS 1337:2012, high impact
• ANSI Z87+ and CSA Z94.3

The original listing also states “AS/NZS 18:01:2024 Type 1”. This reference requires confirmation against the manufacturer's documentation and has not been corrected to an assumed standard.

Selection and Use

Confirm suitability for the specific airborne hazard, task and work environment before purchase. Follow the manufacturer’s instructions for filter selection, airflow checks, charging, maintenance and visor operation. Do not assume protection is maintained with the visor open.
