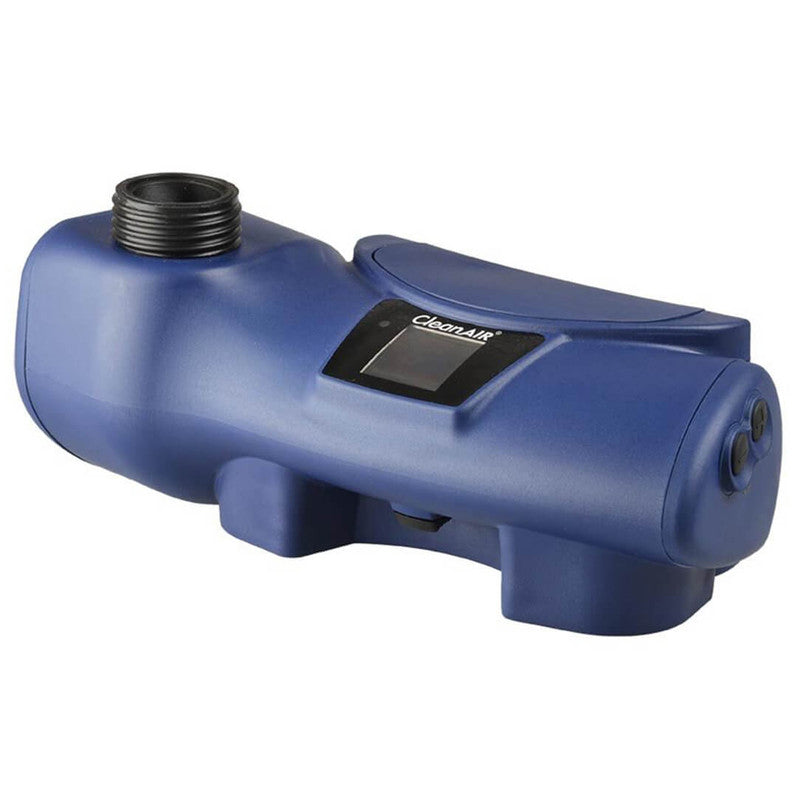

Maxisafe Chemical 2F Plus PAPR Fan (R510000NA-AUS)

Maxisafe CleanAIR Chemical 2F Plus PAPR Fan Unit Kit (R510000NA-AUS) includes the fan unit, standard rechargeable battery, charger and flow indicator. Its compact design, adjustable airflow and full-colour display make it straightforward to monitor airflow and battery status while working.

Important: not a complete ready-to-wear respirator

Belt, filters and decontamination plugs are not included. Compatible head protection or facepiece, breathing hose and other required accessories must be selected separately to suit your complete system. Choose filters and respiratory equipment for the specific hazard and follow the manufacturer's instructions before use.

Key Features

• Adjustable airflow from 120 to 235 litres per minute.
• Flow Control system maintains airflow as filter loading and battery charge change, within the unit's operating limits.
• Full-colour display shows airflow, battery charge and filter status.
• Audio and visual alarms alert you when attention is required.
• Compact housing designed for mechanical and chemical resistance.
• Compatible system options include hoods, masks and ventilated protective suits, depending on the approved configuration.
• Multilingual user interface.

What's Included

• CleanAIR Chemical 2F Plus fan unit.
• Standard 14.4 V, 2.6 Ah lithium-ion battery.
• Battery charger.
• Flow indicator.

Specifications

• Product code: R510000NA-AUS.
• Weight with standard battery: 960 g.
• Airflow adjustment: 120–235 L/min.
• Standard battery: 14.4 V / 2.6 Ah lithium-ion.
• Standard battery charging time: less than 3 hours.
• Optional heavy-duty battery: 14.4 V / 5.2 Ah, sold separately.
• Hose connection: CA40 × 1/7 inch.
• Alarms: audio and visual.

Belt and Harness Options

Choose from the following belt and harness options for your setup. All are sold separately and are not included with this fan unit kit.

• R510051 – Maxisafe PVC Decontaminable Belt
• R510052 – Maxisafe Hypalon Back Harness for Chemical
• R710092 – Maxisafe Comfort Belt Super for Basic and Chemical 2F
• R720092 – Maxisafe Heavy-Duty Leather Comfort Belt
• R710094 – Maxisafe Comfort Backpack Harness for CleanAIR PAPR Units
• R520044.1 – Maxisafe Comfort Harness for CleanAIR Chemical 2F and 3F

Filters

Filters are sold separately. Select the correct filter for the hazard and approved respirator configuration; these filter types are not interchangeable for every application. The filters below are supplied individually.

• R500048 – CleanAIR P3 Filter, DIN Thread RD40 × 1/7 inch
• R500357 – CleanAIR A1P3 Combined Filter
• R500157 – CleanAIR A2P3 Combined Filter
• R500167 – CleanAIR A2B2P3 Combined Filter
• R500364 – CleanAIR A1B1E1P3 Combined Filter
• R500164 – CleanAIR A2B2E2P3 Combined Filter
• R500168 – CleanAIR A2B2E2K2P3 Combined Filter
• R500166 – CleanAIR A2B2E2K2HgP3 Combined Filter

Pre-Filters and Filter Accessories

Optional accessories, sold separately.

• R500109 – CleanAIR Pre-Filter Keeper
• R500110 – CleanAIR Pre-Filters for DIN Thread Filters, 10 Pieces with 1 Keeper
• R500112 – CleanAIR Canister Filter Spark Arrester, 2 Sets

Battery, Charger and Decontamination Accessories

The standard battery and charger are included with the fan unit kit. The following items are available separately as an upgrade, replacement or additional accessory.

• R510020 – CleanAIR Chemical 2F Heavy-Duty Lithium-Ion Battery
• R510030AU – Battery Charger for Chemical 2F, 2F EX and 3F Belt Units
• R510046 – Decontamination Set for Chemical 2F

Battery and Configuration Notes

Runtime varies with airflow setting, filters, battery condition and the complete respirator configuration. The optional heavy-duty battery is not included. Check the manufacturer's instructions for the runtime and protection rating of your chosen setup. Do not immerse or decontaminate the unit without following the specified preparation and sealing procedure.

Complete Your Setup

Browse our respiratory protection range for suitable equipment, or explore more Maxisafe safety gear. Confirm accessory and filter compatibility with this unit before ordering.
