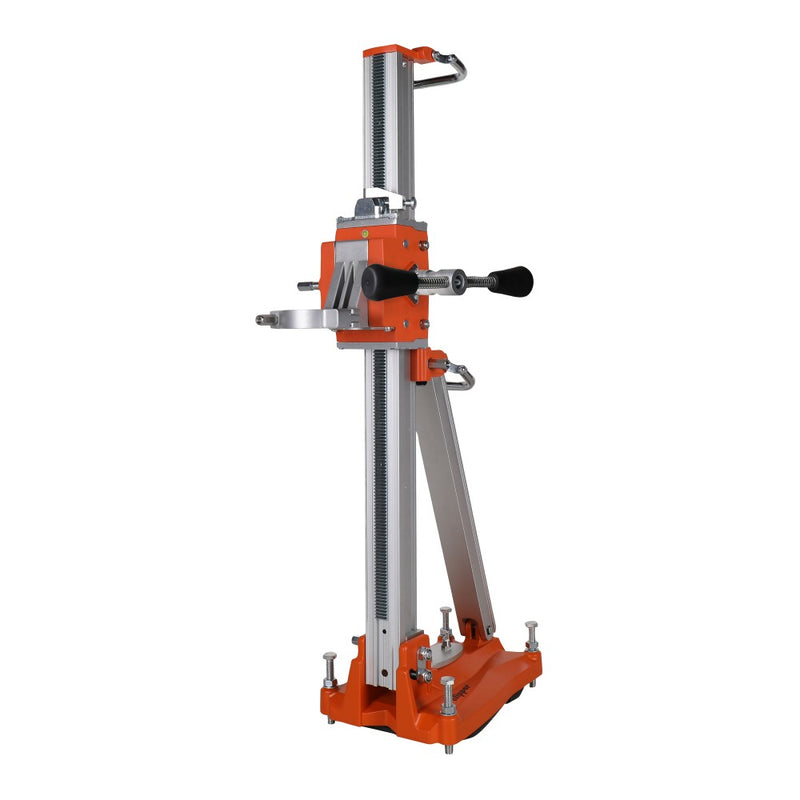

Norton Clipper CDR 164 Core Drill Stand Aluminium 160mm

The Norton Clipper CDR 164 Core Drill Stand (00310613820) is a professional-grade, lightweight aluminium drill stand designed for high-precision core drilling in construction and renovation applications. Engineered for rigidity and ease of use, it features a maintenance-friendly polyamide guide bushing system with two eccentric rollers for a smooth, accurate stroke.

The torsion-resistant design is suited for both wet and dry drilling. Its lightweight aluminium construction makes it highly portable without sacrificing stability on site. The ideal companion to the Norton Clipper CDM204 Core Drill motor.

Key Features

• Lightweight aluminium column — durable and highly portable
• Left or right-mounted multi-purpose drive lever — ideal for confined spaces, doubles as levelling and locking control
• Spirit level and roll-guided carriage for accuracy throughout the stroke
• Ring mounting motor collar — quick, tool-free motor mounting
• Pre-mounted rig — ready to use straight from the box
• Tilting from 0–45° for angled drilling applications

Specifications

• SKU: 00310613820
• Column: Aluminium
• Max diameter / hub: 160mm / 510mm
• Base: Dowel + vacuum
• Base dimensions: 280 x 460mm
• Height: 978mm
• Mounting plate: Ring 60mm
• Guiding system: Rolls
• Tilt: 0–45°
• Weight: 14.2kg
