Sigma Series 4 Tile Cutter ART4BU / ART4CU / ART4DU

Sigma Series 4 Pull Tile Cutter gives you manual pull scoring in a choice of three cutting lengths. Choose the 70 cm ART4BU, 84 cm ART4CU or 103 cm ART4DU to suit the tiles you work with.

The ergonomically shaped pull handle and bearing-guided carriage help you make controlled scoring passes. Select the cutting length to suit your longest planned cut, allowing for diagonal cuts as well as straight cuts.

Model Differences: Cutting Length and Side Support Arms

• ART4BU – 70 cm: 700 mm straight cutting capacity. The shortest cutting-length option in this range, suited to jobs where your required straight cuts are no longer than 700 mm. Listed diagonal cutting capacity: 490 mm.

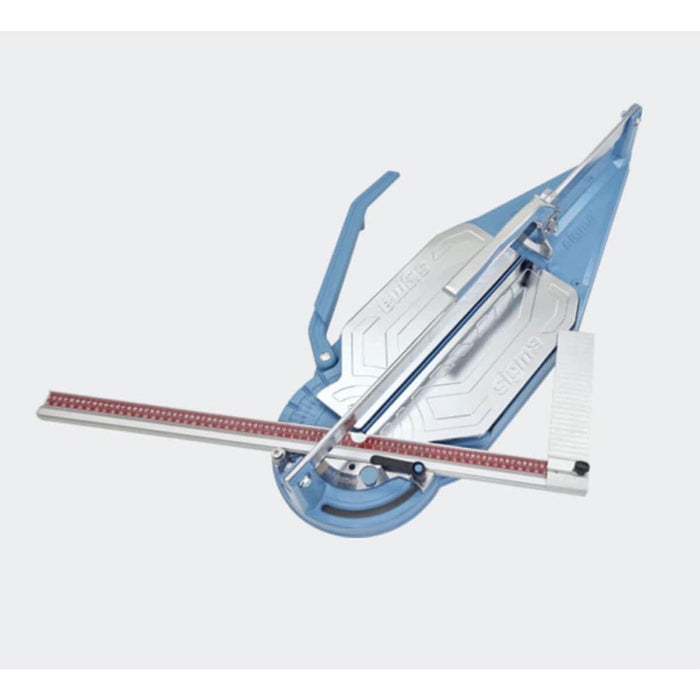

• ART4CU – 84 cm, one side support arm: 840 mm straight cutting capacity with a single swivelling side support arm to support tiles extending beyond the cutter bed. Gives you 140 mm more cutting length than the ART4BU.

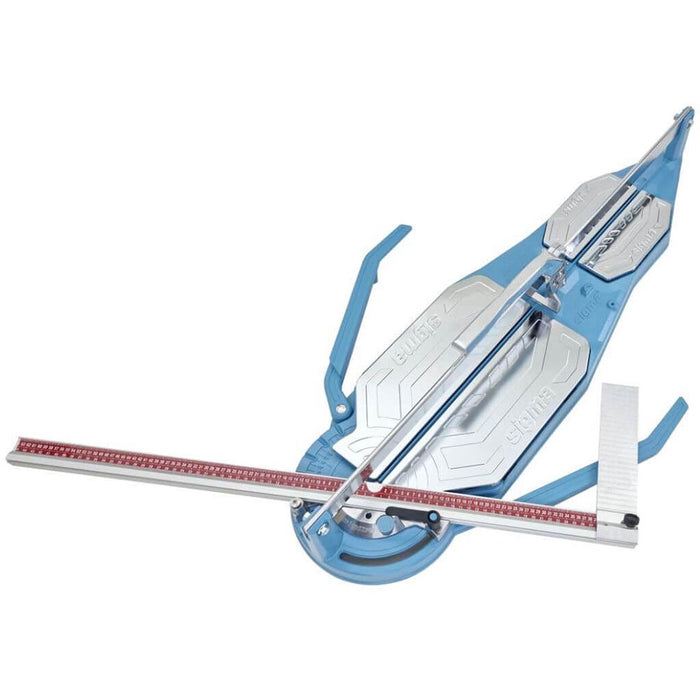

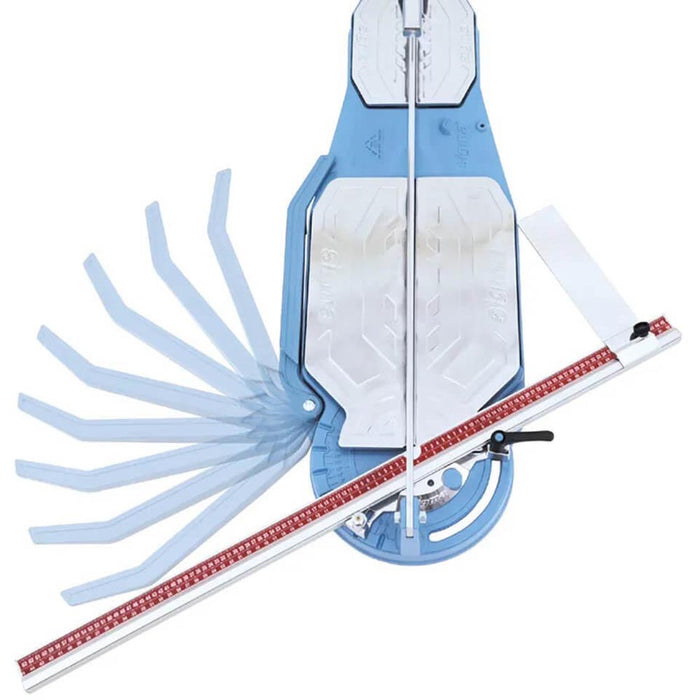

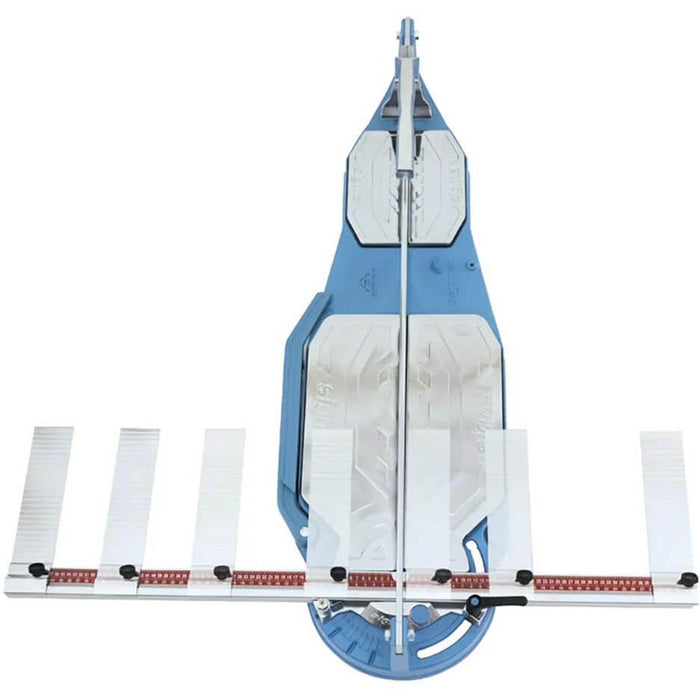

• ART4DU – 103 cm, two side support arms: 1030 mm straight cutting capacity with a side support arm on each side of the cutter bed. The longest cutting-length option here, giving you 190 mm more than the ART4CU and 330 mm more than the ART4BU.

Choose by the length of the cut you need, not just the tile's nominal size. Diagonal cuts require more cutting length than straight cuts across the same tile. The 490 mm diagonal capacity listed here applies to the ART4BU only; diagonal capacities for the ART4CU and ART4DU are not specified on this listing.

Optional Sigma ART22V Laser

The optional Sigma ART22V laser is compatible with all three models: ART4BU 70 cm, ART4CU 84 cm and ART4DU 103 cm. The laser is an optional accessory, sold separately and not included with the tile cutter.

Shared Series 4 Features

• Manual pull-scoring action with an ergonomically shaped handle.

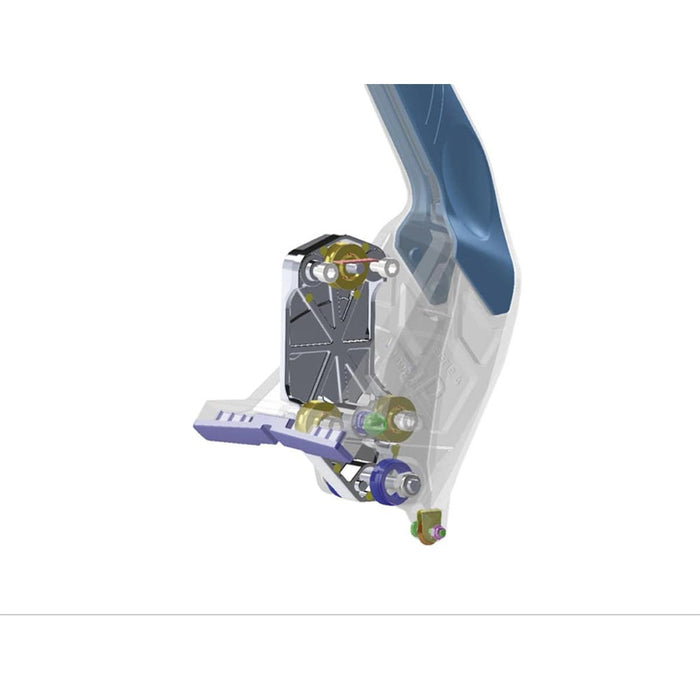

• CNC-machined scoring-wheel holder and anti-friction metal housing designed to reduce friction and lateral wheel wear.
• Sliding carriage guided by three double-row ball bearings for consistent travel.
• Automatic steel compensator adjusts carriage preload on the guide.
• 12 mm diameter scoring wheel.

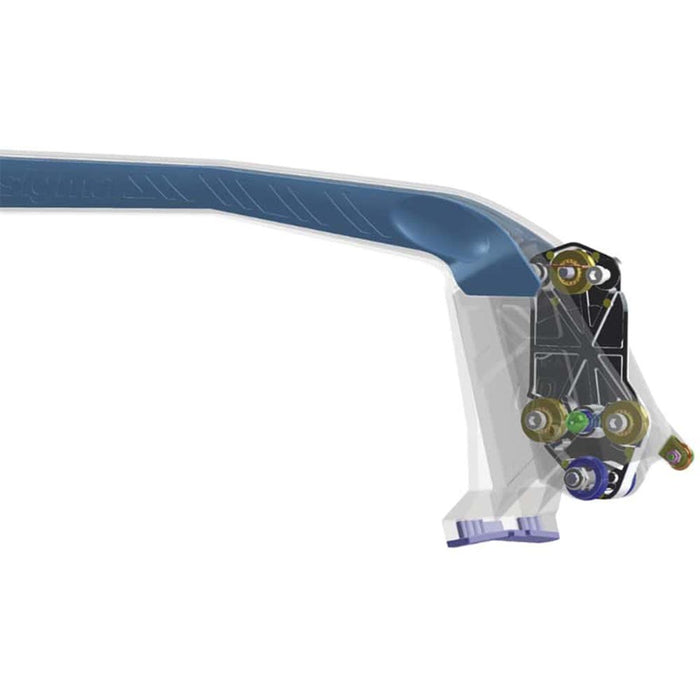

• Handle mounted to the carriage with two thrust ball bearings for precise movement.
• Compatible with the optional Sigma ART22V laser, sold separately.

ART4BU 70 cm Specifications

• Operation: manual pull-style scoring.
• Maximum straight cutting length: 700 mm.
• Maximum diagonal cutting length: 490 mm.
• Maximum cutting thickness: 17 mm.
• Splitting foot width: 100 mm.

The specifications in this section are for the ART4BU 70 cm model and should not be used as specifications for the ART4CU or ART4DU. Select your required size before adding to cart.
