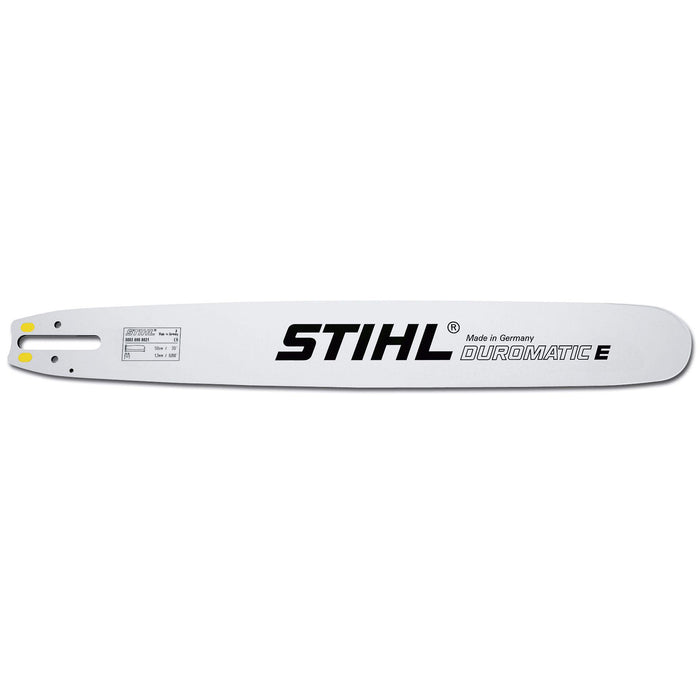

STIHL 3002 000 8052  DUROMATIC 90CM/36"Guidebars

The STIHL Duromatic bar is an exceptionally robust solid bar for chainsaws in the middle and high performance categores. The bar itself is made from extremely strong solid steel. The bar nose, which is exposed to the greatesy stress, is protected by a carbide alloy plating.

This can also be used with pitch 3/8" but then needs a 114 DL chain.

Specifications:

• Bar Mount: 3002
• Chain length: 90 cm (36")
• Gauge: .063" (1.6 mm) (the thickness of the chain on the drive link must correspond to the track width of the bar)
• Drive Links: 104 DL (Length is determined by counting the number of drive links, also called drive lugs. )
• Pitch: .404"
• Weight: 3.05 kg
