STIHL FSA 135 R Loop-Handle Brushcutter (FA01 200 0029)

STIHL FSA 135 R Loop-Handle Brushcutter (FA01 200 0029) is a cordless brushcutter for mowing grass and clearing scrub around gardens, properties and landscaped areas. Its loop handle gives you more freedom to manoeuvre between trees, shrubs and other tight spaces. This listing is for the skin only; battery and charger are not included.

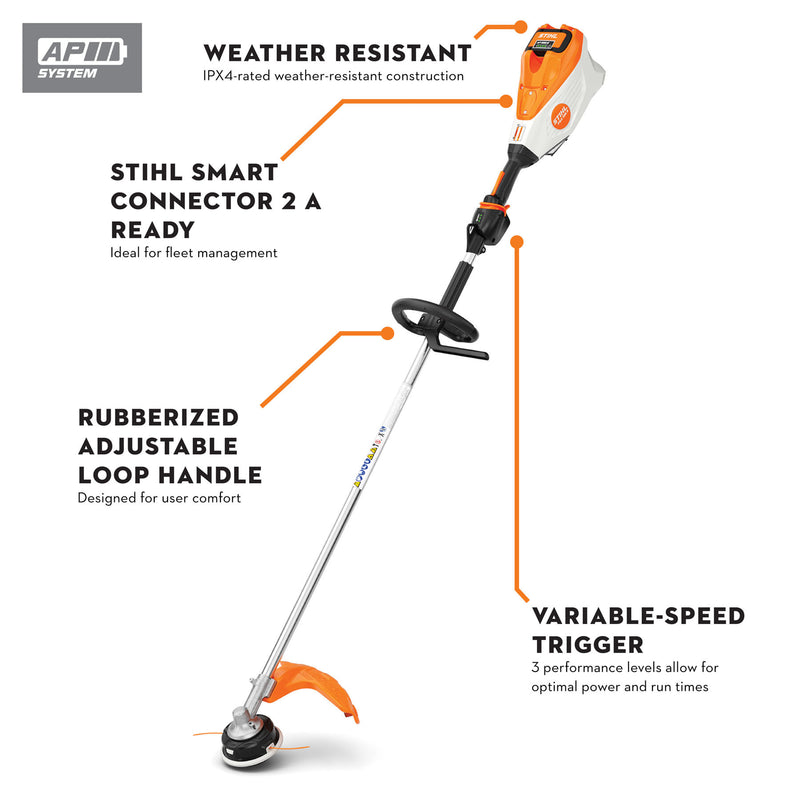

Key Features

• Loop handle for precise control in confined spaces
• Efficient EC motor with 1kW power output
• Variable speed control with three settings and a power-saving mode indicator
• Metal-mesh air filter supports motor cooling and is easy to clean
• IPX4 splash-water protection for work in wet conditions
• Prepared for STIHL Smart Connector 2 A (sold separately)
• Compatible with a range of STIHL cutting tools, depending on the job

Specifications

• Brand: STIHL
• Model: FSA 135 R
• Part number and display code: FA01 200 0029 (FA012000029)
• Rated voltage: 36V
• Power consumption: 1.2kW
• Power output: 1kW
• Cordless system: STIHL ALLPRO / AP
• Recommended battery: AP 300 S
• Weight without battery: 4.3kg
• Cutting circle diameter: 420mm
• Standard cutting attachment: AutoCut C 26-2
• Length without cutting tool: 184cm
• Sound pressure level: 80dB(A)
• Sound power level: 92dB(A)
• Ingress protection: IPX4

Battery Runtime Guide — Line Mowing Head

• AP 200: 17–28 min
• AP 200 S: 17–28 min
• AP 300: 19–36 min
• AP 300 S: 25–45 min
• AP 500 S: 30–54 min
• AR 2000 L: 96–170 min
• AR 3000 L: 138–234 min

Runtime varies with the battery and working conditions. Battery and charger are sold separately.

For a replacement cutting head, see the STIHL AutoCut C 26-2 mowing head.

Prefer the bike-handle model? See the STIHL FSA 135 Bike Handle Brushcutter (FA01 200 0025).
