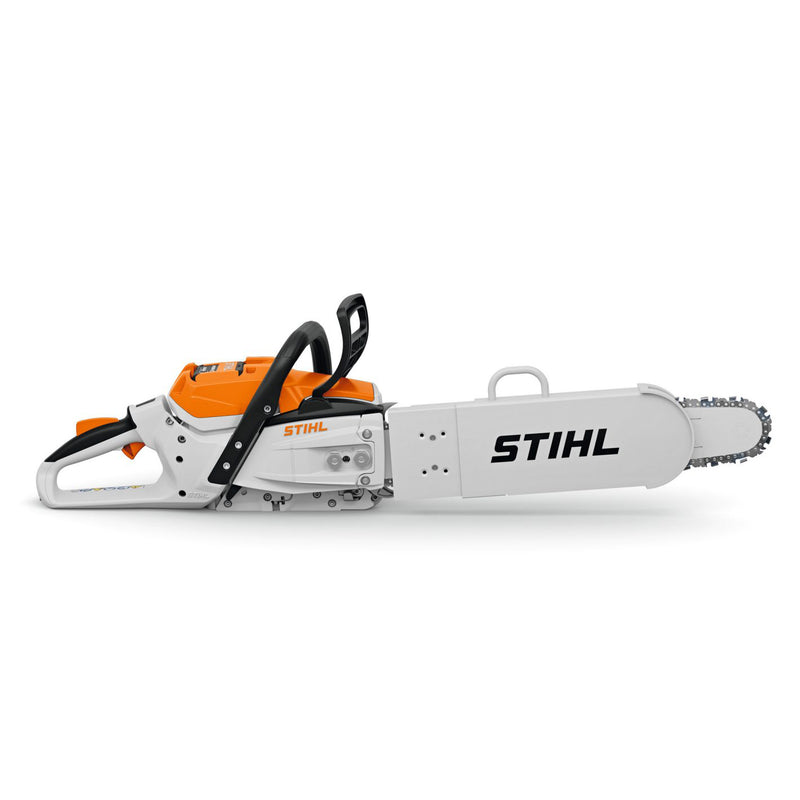

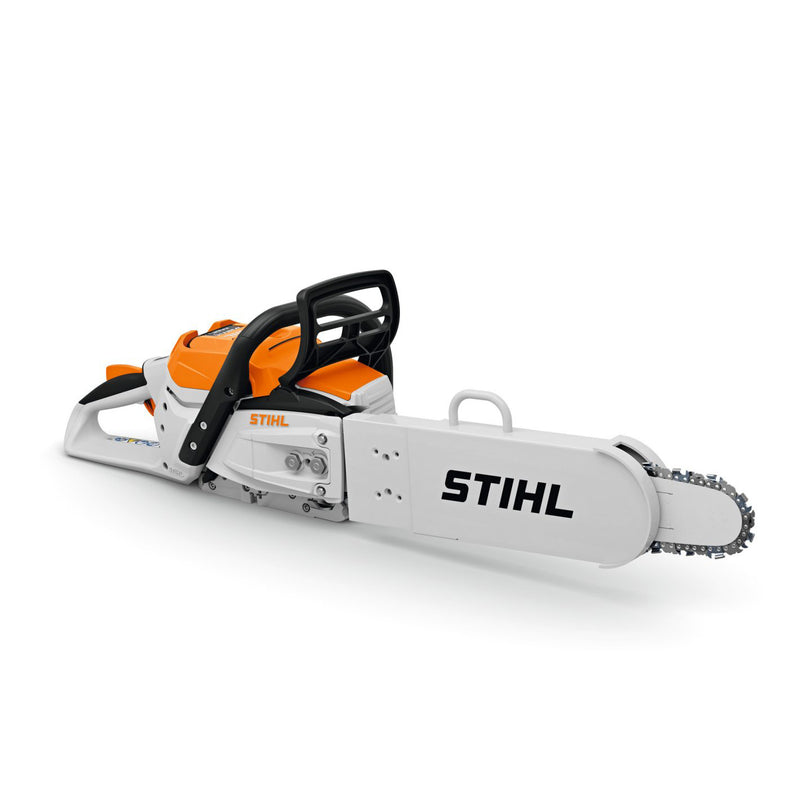

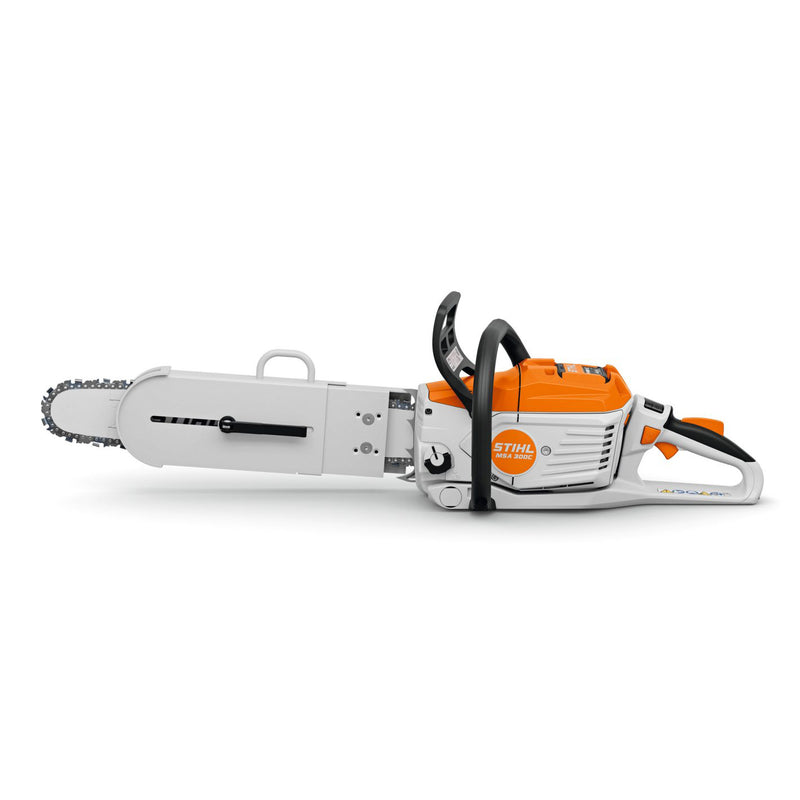

STIHL MSA300R Battery Chainsaw 20" Bar MA022000113

STIHL MA022000113 MSA 300 R Battery Chainsaw 20" Bar

Powerful, precise and dependable for demanding emergency services

The STIHL MSA 300 C-O R battery emergency services saw comes with a number of special features designed for emergency services applications to make rescue operations faster and more effective. As the first battery emergency services saw from STIHL, it enables firefighters and emergency services personnel to work precisely and even cut through resistant materials such as sheet metal, bitumen board and wire glass. Particularly in areas where exhaust fumes are undesirable, the emergency services saw, equipped with the extremely robust STIHL Rapid Duro R carbide saw chain and its armouring of impact-resistant carbide plates, offers great added value.

Thanks to the powerful STIHL AP 500 S battery developed for this chainsaw, the huge electric output of 3.0 kW is converted into a chain speed of up to 30 m/s. A further advantage of the STIHL MSA 300 C-O R is its weatherproof and durable construction. The STIHL anti-vibration system reduces vibrations and relieves strain on your muscles and joints. The oil sensor also continuously measures the amount of chain oil present, helping you to work with as few interruptions as possible.

To protect the power electronics and the motor, the MSA 300 C-O R is equipped with an easily accessible and easy-to-clean cooling air filter which filters dust and sawdust from the cooling air flow. The STIHL MSA 300 is the first chainsaw from STIHL to feature an operation and notification cockpit that provides you with all the essential data and information about your saw.

The STIHL MSA 300 C-O R battery chainsaw is also ready for networked working via STIHL connected, thanks to the Smart Connector 2 A.

As an emergency services saw, the STIHL MSA 300 C-O R also offers the following features:

• A depth limiter for controlled plunge cutting
• An additional handle for quick and easy adjustment of the cutting depth

In our overview of STIHL battery life and charging times, you can see how long you can work with your STIHL MSA 300 and how long the selected AP battery takes to charge. The overview also shows which AP battery is recommended for your STIHL power tool.

All battery power tools within the STIHL AP system have been designed for regular professional use, even in adverse weather conditions. For this reason, they are certified as splashproof. The effectiveness of this is also verified through demanding internal tests. The splashwater test is aligned with the IPX4 standard, among others. For the STIHL MSA 300 C-O R, the splash guard that has already been proven by internal testing has also been certified in accordance with the IPX4 protection class.

Note: STIHL recommends the chain lubricants STIHL SynthPlus & STIHL BioPlus. Operation is possible with other light chain lubricants produced on a vegetable or mineral oil base.

Note: You can only use the full range of functions of this battery chainsaw with a STIHL AP 500 S battery installed. If other STIHL batteries are used, we can neither guarantee that all functions will be available nor that the maximum possible sawing performance will be achieved.

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

Power Boost

Maximum Performance Increase. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.

Constant Power

When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.

Cold Start Function

Reliable Starting In Cold Temperatures. Batteries only work at full power in ideal temperatures. If it is too cold, it usually takes time for the battery to warm up. Thanks to the cold start function, the tool is ready to start immediately, even at low temperatures down to -20°C, and offers almost the same output as at ideal temperatures.

Oil Sensor

For Control And Monitoring Of The Oil Supply. The LED display on the oil sensor informs you about the delivery of chain lubricant. If the LED is red, there is not enough chain oil reaching the chain. When the oil supply is sufficient, the LED is off.

Controlled-delivery Oil Pump

Oil Consumption Based On Need. The controlled-delivery oil pump reduces your chainsaw’s oil consumption by up to 50%. To use it, simply select the E position. For very long cutting attachments or very dry wood, an additional oil volume can be set by the user.

Non-woven Air Filter

For Effective Protection Of Power Electronics And Engine Parts. The non-woven air filter filters sawdust, fine dust and dirt from the cooling air flow. This keeps the heat sinks of the power electronics and the engine parts clean in the long term. The removed non-woven air filter can be easily and effectively cleaned with STIHL Varioclean and then reused. Cleaning should be carried out regularly – monthly in the event of heavy use.

Tool-free Fuel Cap For Oil Tanks

Quick And Easy To Use. Thanks to the bayonet closure, you can open and close the tool-free fuel cap in just a few simple steps.

Control Lever With Potentiometer Function

For Comfortable Handling. The control lever with potentiometer function allows you to control the speed of your battery chainsaw on an infinitely variable basis, and in this way easily control and adjust its performance as needed.

Operation And Notification Cockpit

Important Status Information At A Glance. The large LED display provides feedback on the status of important chainsaw components.

Operating Modes

Adapted To Your Work. This chainsaw offers you 3 different operating modes. In “Eco” mode, the chainsaw operates with reduced power for maximum battery runtime. “Felling” mode uses the highest possible torque at reduced chain speed, to help you saw as evenly and powerfully as possible. “Delimbing” mode gives you a very high chain speed for precise cuts. Use the activation button to start your chainsaw in your preferred mode.

Performance Electronics With Derating Function

Effective Performance Monitoring. The derating function offers you two advantages in your work: first, this function protects your chainsaw against possible overheating by reducing the current. Additionally, it notifies you by means of a reduction in power if you only have very little battery power remaining. In both cases, the function allows you to finish cuts that have already started without the engine switching off.

IPX4 Certified

Splashwater Protection. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.

Energy Management

Compatible With The Smart Connector 2A. You can mount a Smart Connector 2 A in the housing of the power tool at the dedicated position. Once installed, this connects to the control unit and transmits valuable power tool data to your smartphone or tablet that is within range. You can use the STIHL connected App and the STIHL connected Portal to view the STIHL connected gathered data and benefit from additional functions. Smart Connector 2 A sold seperately.

Specifications:

• Rated voltage: 36 V
• Max. voltage: 40 V
• Power consumption: 3.50 kW
• Power: 2.90 kW 1)
• Cordless power system: ALLPRO/AP
• Recommended battery: AP 500 S
• Device weight without battery: 4.4 kg 2)
• System weight without battery: 6.10 kg 3)
• Bar length: 50 cm 4)
• Bar length: 20 in 4)
• Groove width: 1.60 mm
• Saw chain pitch: .325"
• Min. battery working time AP 500 S: 20 min 5)
• Max. battery working time AP 500 S: 44 min 5)
• Device length with bumper spike: 494 mm 2)
• Sound pressure level: 96 dB(A) 6)
• Sound power level: 104 dB(A) 6)
• Vibration level left: 2.6 m/s² 7)
• Vibration level right: 2.8 m/s² 7)
