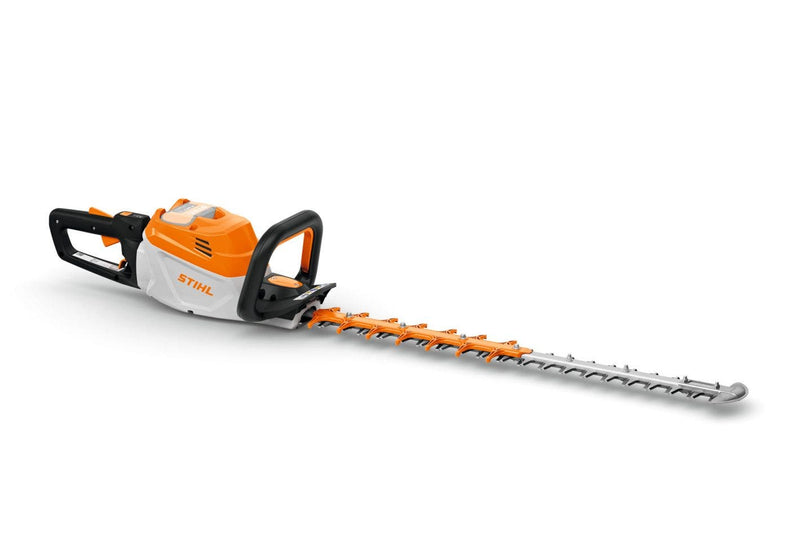

STIHL HSA 140 R 75cm Hedge Trimmer (HA02 011 3505)
The STIHL HSA 140 R 75cm Battery Hedge Trimmer (HA02 011 3505) is built for hedge pruning, with a double-sided blade and lower blade speed to tackle demanding growth. Its rotating rear handle helps you change comfortably between horizontal and vertical cutting positions.
Skin Only
Battery and charger are sold separately. Cordless system: STIHL ALLPRO / AP. The recommended legacy battery is the AP 200 S.
Optional 750mm Catcher Plate
Add the STIHL HSA 140 750mm catcher plate, HA02 740 3302 (HA027403302) for this 75cm hedge trimmer. It catches cuttings on the blade so you can move them clear of the hedge, helping reduce clean-up time. The catcher plate is an optional accessory, sold separately and not included with the trimmer. Choose the 750mm version for this model, not the 600mm version.
HSA 140 R vs HSA 140 T Comparison
On smaller screens, swipe across the table to compare both models.
| Feature | HSA 140 R | HSA 140 T |
|---|---|---|
| Part number | HA02 011 3505 | HA02 011 3510 |
| Best suited to | Heavier hedge pruning | Shaping and fine finishing cuts |
| Blade length | 75cm | 60cm |
| Blade configuration | Double-sided pruning blade | Double-sided trimming blade |
| Blade speed range | 2,600–3,400 strokes/min | 3,900–5,000 strokes/min |
| Speed settings | Three levels | Three levels |
| Rated voltage | 36V | 36V |
| Power output | 0.46kW | 0.46kW |
| Battery system | STIHL ALLPRO / AP | STIHL ALLPRO / AP |
| Rear handle | Rotates 90° left and right | Rotates 90° left and right |
| Splash protection | IPX4 | IPX4 |
| Battery and charger | Sold separately, skin only | Sold separately, skin only |
Choose the HSA 140 R for its longer pruning blade and lower stroke rate for heavier hedge pruning. For shaping hedges and fine finishing cuts, compare the STIHL HSA 140 T 60cm hedge trimmer (HA02 011 3510). Blade length and speed alone do not determine maximum branch-cutting capacity; follow the operating manual.
Key Features
- 75cm double-sided pruning blade with wider tooth spacing for demanding hedge growth.
- Three selectable stroke-rate levels, ranging from 2,600 to 3,400 strokes per minute.
- EC motor helps maintain a consistent stroke rate under load.
- Multi-function rear handle rotates 90° left or right for different cutting directions.
- Plug-in battery fits directly into the tool without an external connecting cable.
- Friction-optimised blades help reduce wear and extend battery working time.
- Screw-on cut protection and tip protector.
- Prepared for STIHL Smart Connector 2A, sold separately.
- IPX4 splash protection, subject to the operating manual.
Specifications
- Model: HSA 140 R
- Part number: HA02 011 3505
- SKU / MPN: HA020113505
- Blade length: 75cm
- Blade configuration: double-sided, pruning version
- Rated voltage: 36V
- Power consumption: 0.65kW
- Mechanical power output: 0.46kW
- Cordless system: STIHL ALLPRO / AP
- Stroke rate: three levels, 2,600–3,400 strokes per minute
- Rear handle rotation: 90° left and right
- Protection rating: IPX4
Battery Runtime
STIHL lists up to 150 minutes with the recommended legacy AP 200 S battery. Actual runtime depends on hedge growth, speed setting, blade condition and battery condition. This figure is not a runtime specification for newer ALLPRO battery models.
Choosing Your Hedge Trimmer
Browse hedge trimmers and shears or explore STIHL Shop Gladesville. Follow the operating manual for protective equipment, safe operation and blade care.
