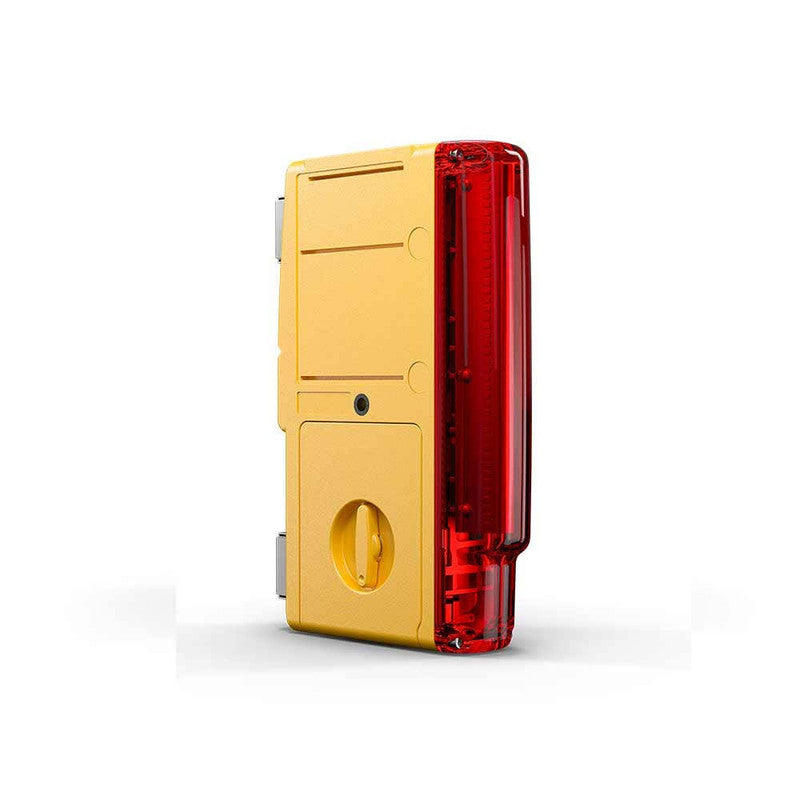

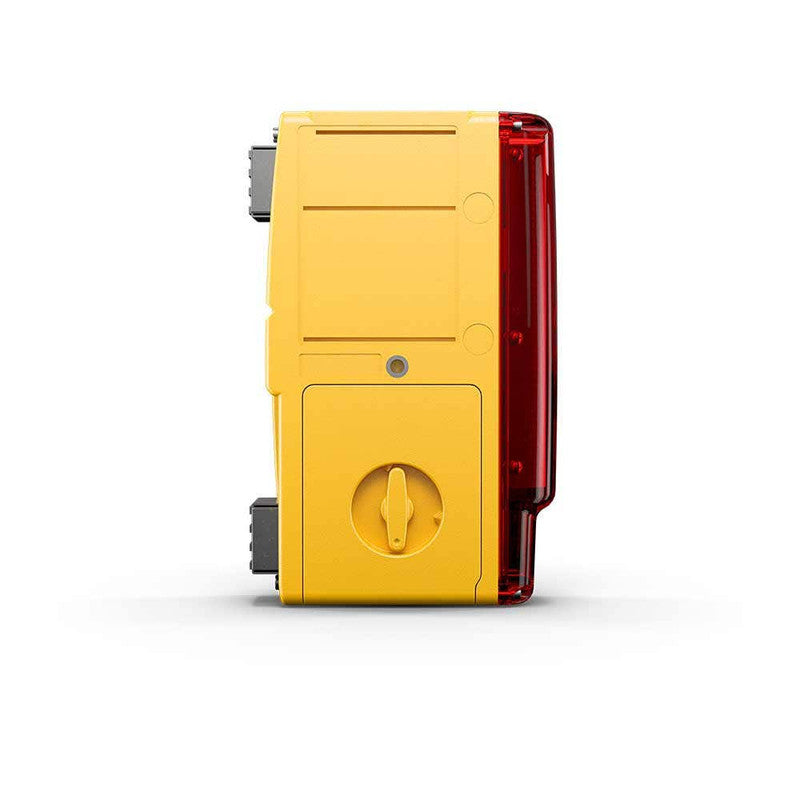

Topcon LS-B20 Magnetic Mount Machine Receiver

Topcon LS-B20 Magnetic Mount Machine Receiver

The LS-B Series of machine-mounted laser sensors are affordable grade indicate systems designed to improve grading, excavating production, and accuracy.

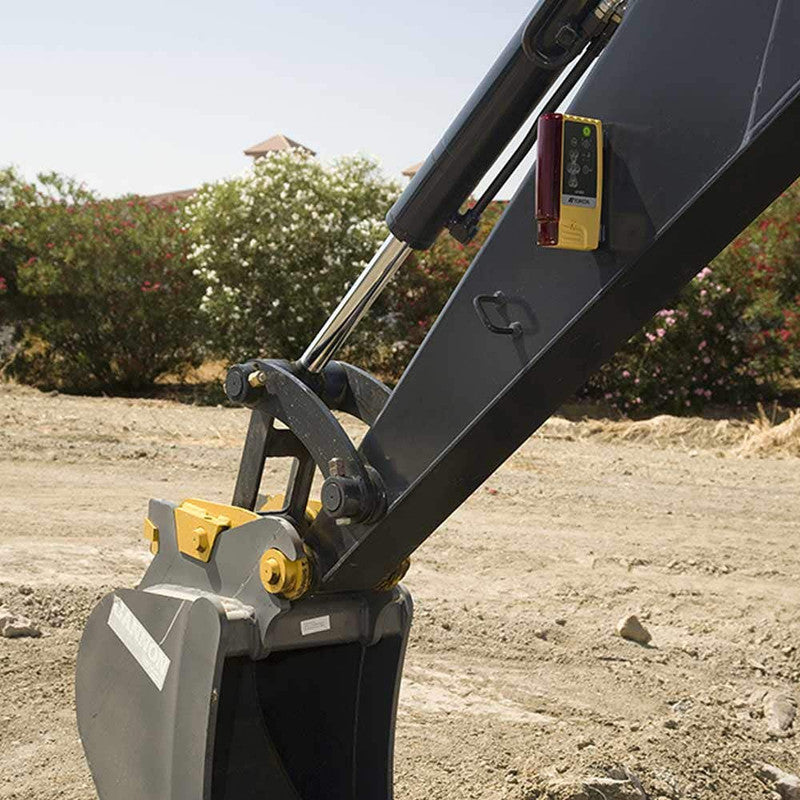

Fast setup and easy-to-use, these depth control sensors can be mounted to your earthmoving machines in minutes. Attach any of the LS sensors to a piece of equipment; turn it on, bench in, and go to work. No more waiting for a grade checker or jumping off your machine to check your own grade. Topcon’s laser sensors you know if you are above, below, or on-grade all the time.

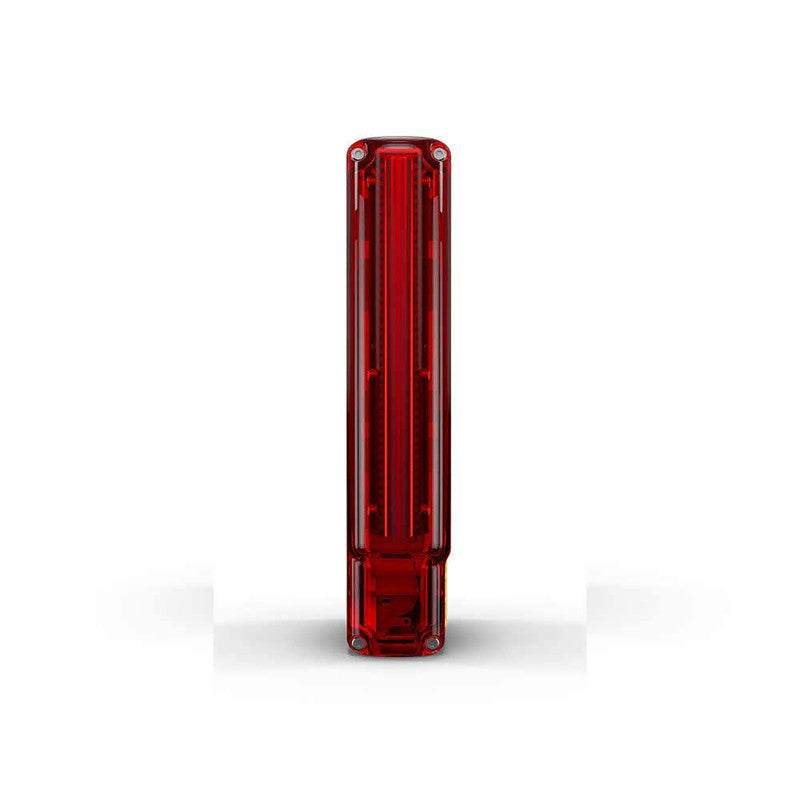

• 270º laser detection angle
• Up to 700m Detection Range

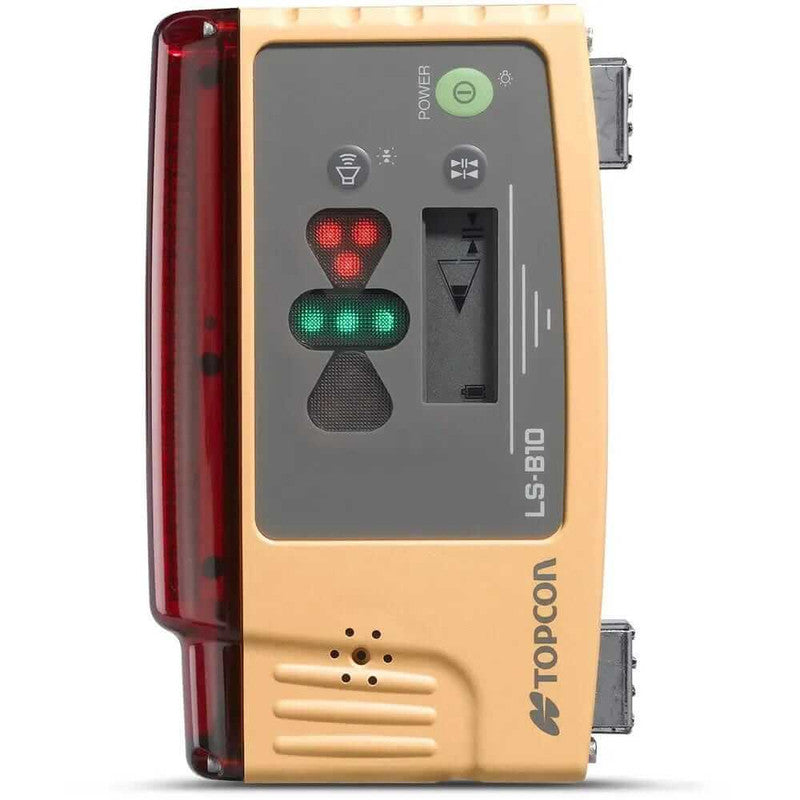

• Large LED indicators
• Display screen

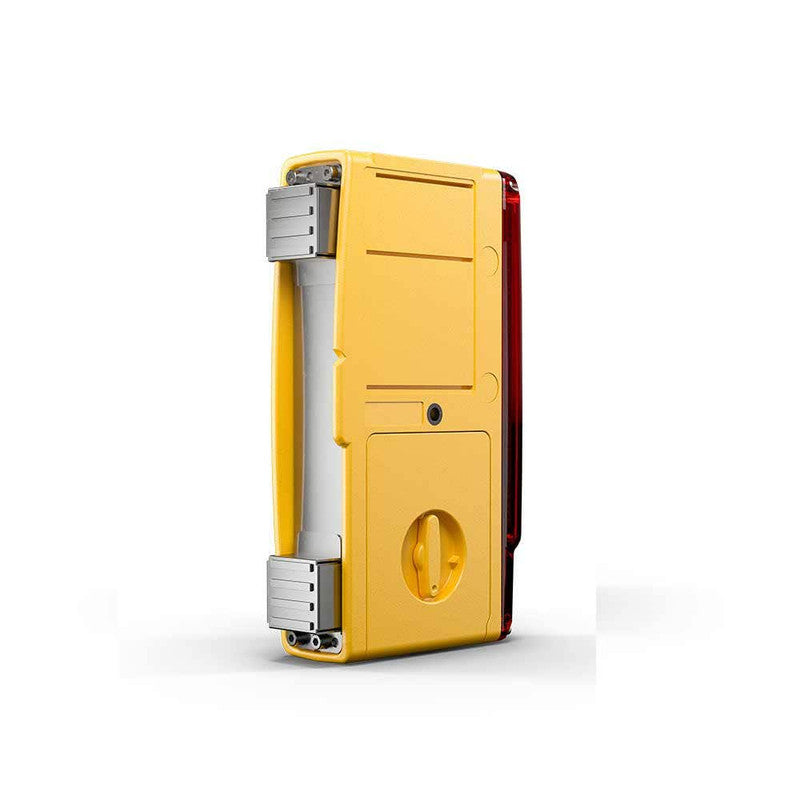

• Magnetic Feet

Specifications

• Detective range: 120mm
• Detective angle: 270° (ON GRADE)
• Detectable laser wavelength: 633~780nm
• Laser Detecting Range (diameter): More than 700m
• Power source: 3 x 'AA' Dry-Cell Batteries.
• Continuous operating time: Approximately 100 hours(Dry Cells)
• Operating temperature: -20°C~+50°C
• Waterproof: IPX6
• Dimensions (W/D/H): 110x36x176(mm)
• Weight (Without cells): 0.53kg

Detective precision:

• Mode1±2mm
• Mode2±6mm
• Mode3±12mm
• Mode4±30mm

Includes

• 1 x LS-B10 Receiver
• 3 x AA Dry Batteries
• 1 x Instruction Manual
