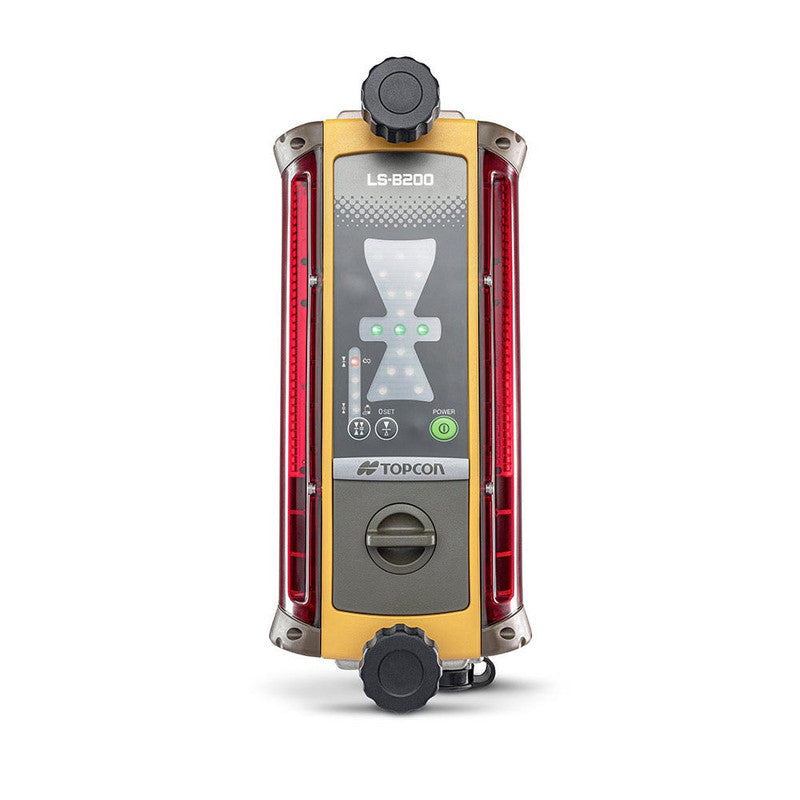

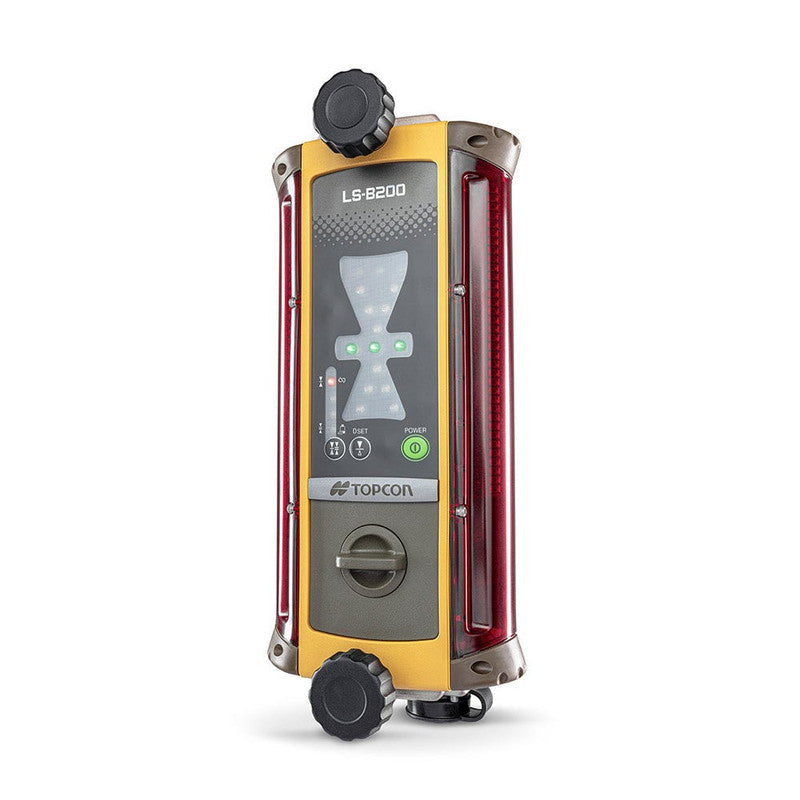

Topcon LS-B200 Machine Receiver
Topcon LS-B200 Machine Receiver
The LS-B200 Series of machine-mounted laser sensors are affordable grade indicate systems designed to improve grading and excavating production and accuracy. Easy to use with a fast setup, these depth control sensors can be mounted to your earthmoving machines in minutes. Attach any of the LS sensors to a piece of equipment, turn it on, bench in, and go to work. No more waiting for a grade checker or jumping off a machine to check your own grade. With Topcon’s laser sensors, you’ll know if you are above, below, or on-grade all the time. Put the LS-B200 Series laser sensor on a dozer, then move it to your excavator and then onto a grader. Because it’s that easy, contractors often want to equip all of their earthmoving machines with these production-boosting control systems. Loaded with features. Each sensor is packed full of features, such as an accuracy mode and battery life Indicator, plus a power save/auto cut-off function to save battery life. Choose from two different models that each provide 360º laser detection to keep your project moving ahead in challenging conditions.
- 360º laser detection angle
- Adjustable "On Grade" Accuracy
- Up to 800m Detection Range (Diameter)
- Large LED Indicators
- Dust/Water Rating IP66
- Pole Mount Unit
- ISO 13766-1 Certification
Specifications
- Detective range: 175mm
- Detective angle: 360° (ON GRADE)
- Detectable laser wavelength: 633~785nm
- Laser Detecting Range (diameter): 800m (Using RL-200 Series)
- Internal battery
- C-size dry cells 4pcs.
- Battery pack BT-83Q (sold separately)
- External power supply: DC 10V to 30V
- Operating temperature: -20°C~+50°C
- Water proof: IP66
- Dimensions (W/D/H): 158x166x357(mm)
- Weight (Without cells): 2kg
Detective precision:
- Mode1±3mm
- Mode2±6mm
- Mode3±15mm
- Mode4±30mm
Continuous operating time:
- Approx. 100hrs(Dry Cells
- Approx. 50hrs (BT-83Q)
