Topcon RL-200 2S Dual Grade Laser (Rechargeable with PREMIUM - LS110D Receiver & Remote Control)

Topcon RL-200 2S Dual Grade Laser (Rechargeable with PREMIUM - LS110D Receiver & Remote Control)

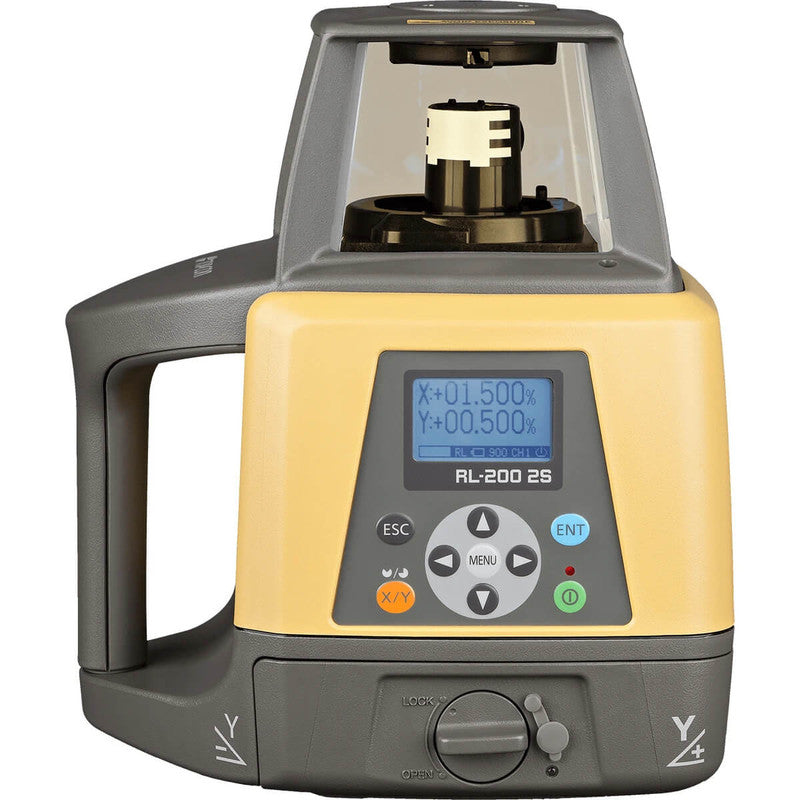

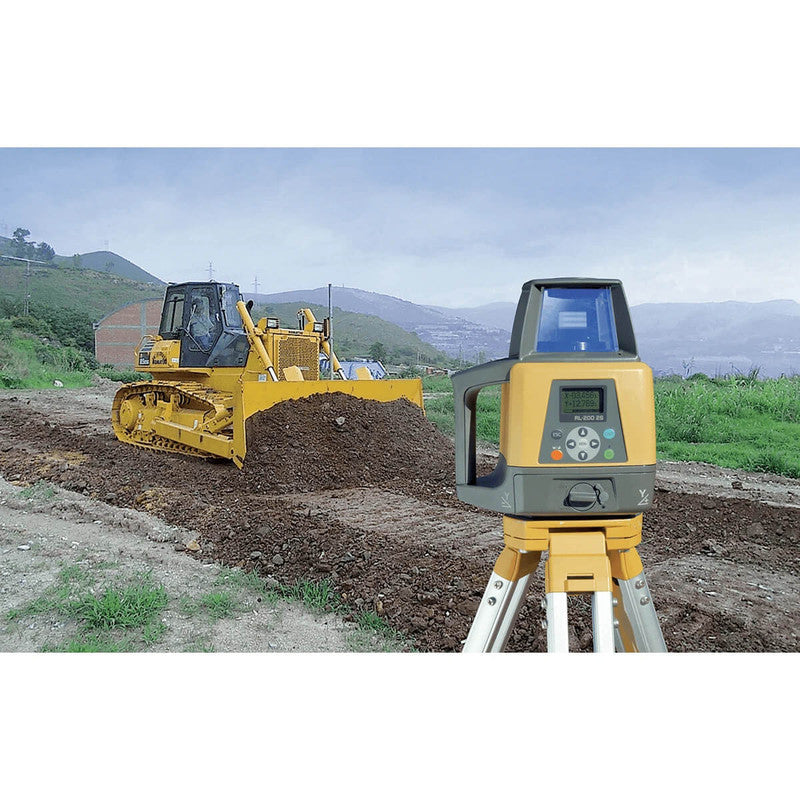

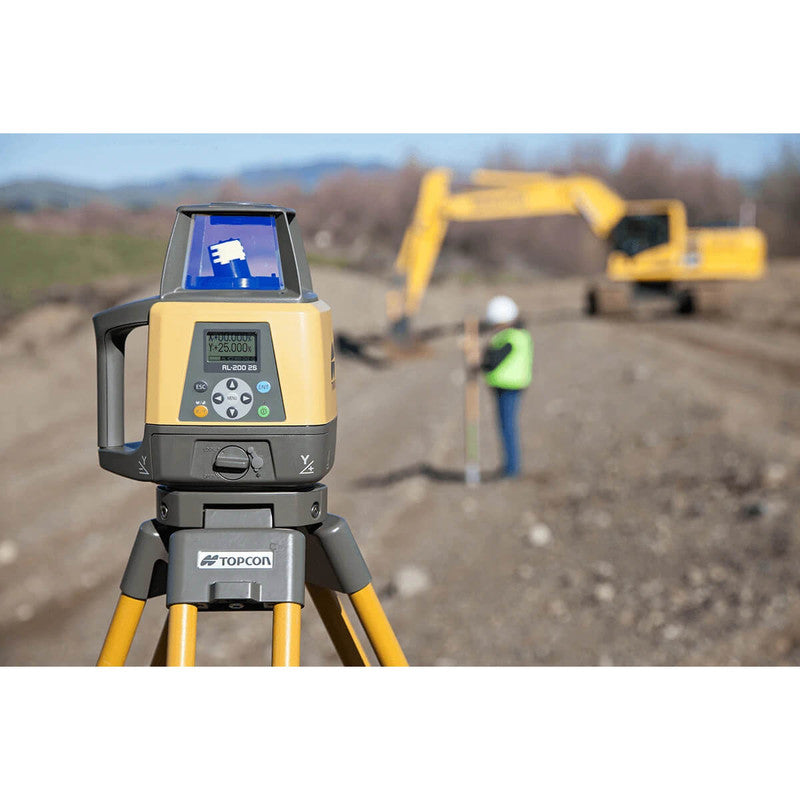

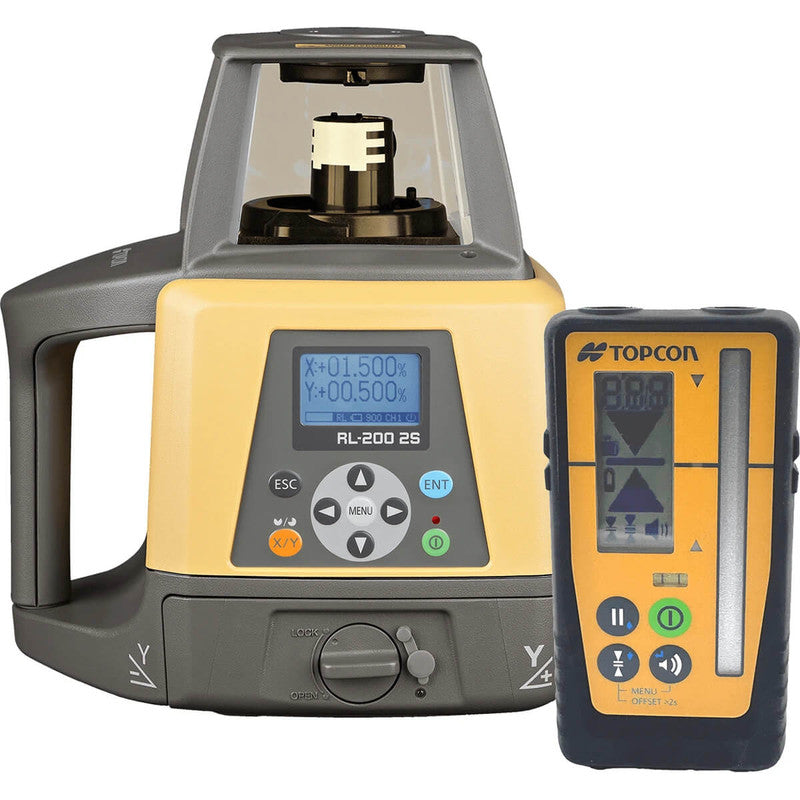

Topcon's RL-200 2S Dual Grade Rotating Laser provides a high grade repeatability of 7 arc seconds. Setup after setup, time after time, you're always right on grade. Topcon lasers are suited to a range of construction exercises including site preparation, drainage, earthworks, 2D machine control applications & more. The RL-200 2S can be used over long distances (up to 1,100m) & can measure up to a 25% slope, allowing you to set the cross slope & elevation values you need to measure. The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to -5 to +25% in the Y axis. Topcon slope lasers set new standards for simplicity & accuracy. The RL-200 comes with a full-utility radio remote & many other features. All operating information is on display, so operators can quickly change grade, select menu settings, check operational status, & verify battery life at any time. This kit includes the premium LS-110D Digital Laser Receiver which is the perfect partner for the RL-200 2S Rotary Laser Level. The Topcon LS-110D laser level receiver is designed to make elevation and vertical alignment control faster and easier for all applications with a digital readout of millimetres to grade. The LS-110D is a precise sensor that can meet the demands of even the toughest job.

Features

• High Quality Functionality To Provide You With The Best Laser Level - With 100 hours of battery life, the RL-200 will last the distance. Easy to use, the clear graphical display makes operation a breeze. With an increased working diameter of 1,100m, the RL-200 has higher specifications than many other slope lasers on the market.
• Advanced Slope Laser System - The RL-200 has an environmental rating of IP66, meaning the instrument can be exposed to adverse environmental conditions without being damaged. This includes getting wet, whether from the rain or a spill, or being covered in dust – whatever the conditions outside – the RL-200 will stay safe. With a seven arc second accuracy & a five-year warranty, you can’t go wrong with our RL-200 lasers.
• Control The Rl-200 Remotely - In the latest in remote control technology, the RL-200 can be fully operated via a radio remote. All the information you need is displayed on the remote control, allowing you to change the grade of the slope measurement, check menu settings & operational details, look at how much battery remains, & more.
• Dual Slopes - The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to an industry leading -5 to +25% in the Y axis.
• Accuracy - The RL-200 best laser levels have perfect accuracy & will be able to deliver all the data you require

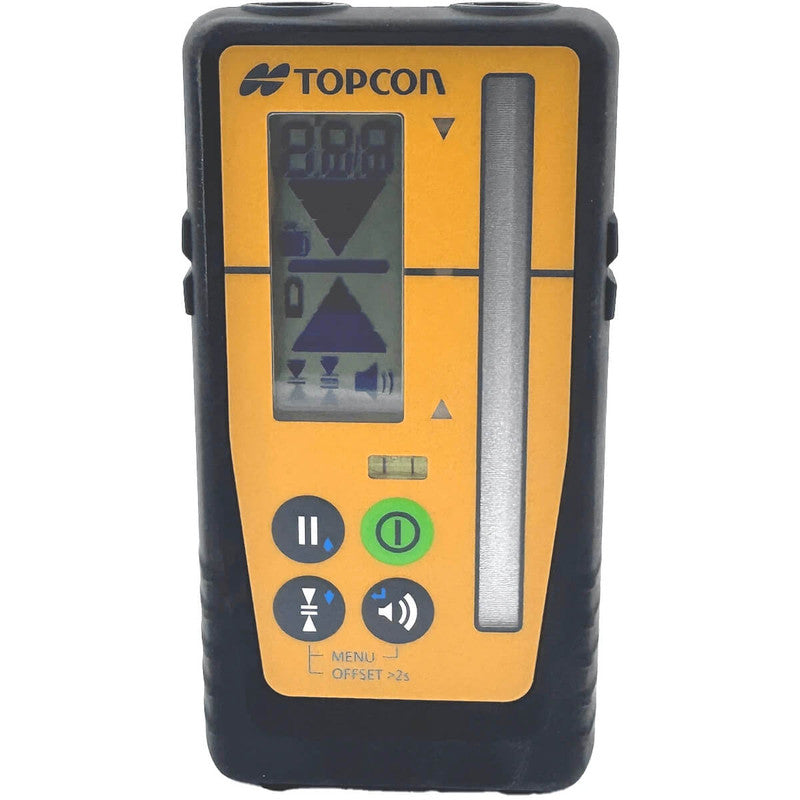

• Premium Receiver - Kit includes the premium LS-110D Premium Receiver (mm)

Specifications

• Accuracy: Horizontal ±7 arc seconds
• Repeatability: 7 arc seconds
• Auto-Level Range: Horizontal ±5°
• Grade Range: ±10% / -5% to +25%
• Working Area: 1100 m
• Rotation Speed: 300, 600, 900 rpm
• Dust/Water Rating: IP66
• Operating Temperature: -20°C to 50°C
• Operating Time: Alkaline: 100 hours, Ni-MH: 90 hours
• Receiver: LS-110D Premium Receiver (mm)
• RC-400 Remote: Up to 300m
• Size (HxWxL): 253 x 218 x 174 mm

Kit Includes

• RL-200 2S Dual Grade Rotating Laser
• LS-110D Laser Receiver
• Receiver Holder
• RC-400 Remote Control
• Rechargeable NIMH Battery Kit
• Hard Case
• Instruction Manual
• Australian Calibration Certificate

Warranty

• 5 Year Limited Warranty by Topcon Australia.
