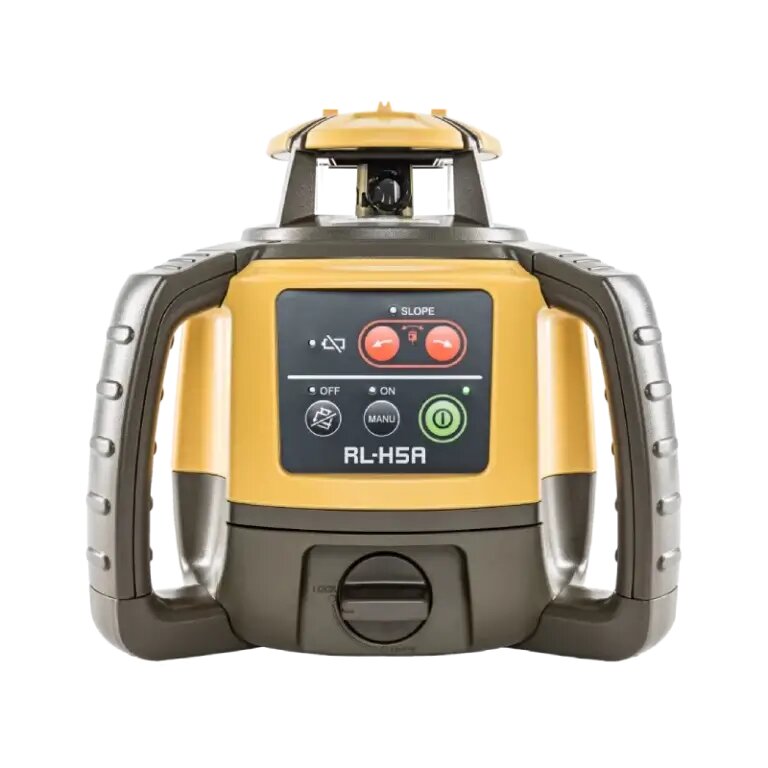

Topcon RL-H5A Rotating Laser (Rechargeable Battery with PREMIUM - LS110D Receiver)

Topcon RL-H5A Rotating Laser (Rechargeable Battery with PREMIUM - LS110D Receiver)

The RL-H5A rotating laser level is an accurate, reliable, multi-purpose construction laser produced by Topcon Laser. Designed to power through the most challenging conditions, the RL-H5A is a construction laser level that won’t let you down. Ideal for a broad scope of applications such as grading, drainage, site set-up, excavation, concreting, earthworks and general construction, the Topcon RL-H5A laser is incredibly versatile.

Topcon RL-H5A stockists located Australia-wide

The Topcon RL-H5A is available for sale from stockists and service centres in Melbourne, Ballarat, Bendigo, Newcastle, Geelong, Cairns, Sunshine Coast, Canberra, Sydney, Brisbane, Perth, Adelaide, Gold Coast, Hobart, Darwin and Australia-wide.

• Long-range operation (800 m)
• Smart long-range receiver
• Simple, intuitive manual slope capability
• ±10 Arc second horizontal accuracy
• Up to 100 hours battery life
• ±5 Degrees self-leveling range

Features:

Long-range high accuracy laser

With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.

Easy to use

With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±10 arc seconds.

Long range operation

Need to shoot elevations up to 400 m from your laser? No problem — this instrument instrument has the power and range to cover a 800 m diameter job site.

Long battery life

The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.

All weather dependability

With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfal

Specifications:

• Accuracy H: ±10 arc seconds
• Self-Leveling Range: Horizontal ±5°
• Working Area 800 m
• Rotation Speed 600 rpm
• Dust/Water Rating IP66
• Operating Time Alkaline: 100 hours
• Ni-MH: 60 hours
• Operating Temp. -20ºC to 50ºC
• Size (H x W x L) 205 x 211 x 172 mm

Kit Components

• RL-H5A laser
• LS-80L or LS-100D sensor
• Sensor holder
• Batteries (Alkaline or rechargeable)
• Chargers
• Carry case
